Description

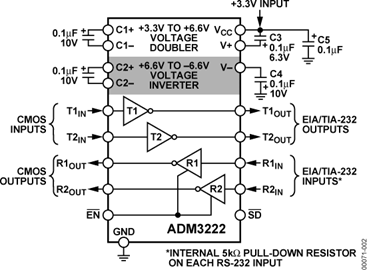

- GENERAL DESCRIPTION
- The ADM3202/ADM3222/ADM1385 transceivers are high speed, 2-channel RS-232/V.28 interface devices that operate from a single 3.3 V power supply. Low power consumption and a shutdown facility (ADM3222/ADM1385) make them ideal for battery-powered portable instruments.
- The ADM3202/ADM3222/ADM1385 parts conform to the EIA-232E and CCITT V.28 specifications and operate at data rates up to 460 kbps.
- FEATURES
- 460 kbps data rate
- Specified at 3.3 V
- Meets EIA-232E specifications
- 0.1 μF charge pump capacitors
- Low power shutdown (ADM3222 and ADM1385)
- PDIP, SOIC_N, SOIC_W, SSOP, and TSSOP options
- Upgrade for MAX3222/MAX3232 and LTC1385
- ESD protection to IEC 1000-4-2 (801.2)
- on RS-232 pins (ADM3202 only)
- ±8 kV: contact discharge
- ±15 kV: air gap discharge
- APPLICATIONS
- General-purpose RS-232 data link
- Portable instruments
- Printers, palmtop computers, PDAs
ADM3222ARS Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 20 Pin |
| Case/Package | SSOP-20 |
| Supply Voltage (DC) | 5.50V (max) |
| Supply Current | 12 mA |
| Data Rate | 460 kbps |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 3V ~ 5.5V |
| Show | |
| Size-Length | 7.2 mm |
| Size-Width | 5.3 mm |
| Size-Height | 1.75 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| HK STC License | NLR |
