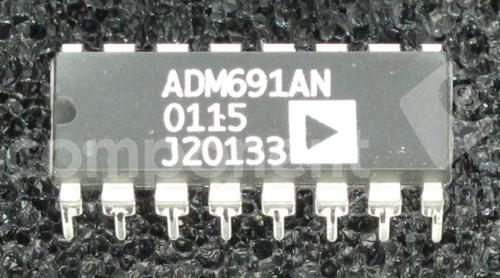

Image is for your reference only,please check specifications for details
- ADM691AN - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC54477504
-
Category:Power Monitor
-
Package:PDIP-16
-
Datasheet:Datasheet 3D Model
-
Description:Microprocessor Supervisor w/ Watchdog Timer, Reset Generator and Battery Steering Processor Supervisor 4.65V 4.75V to 5.5V Automotive 16Pin PDIP Tube
-
Stock Locations:
-
Availability:1,451 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 5.84
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Supervisor Open Drain, Push-Pull 1 Channel 16-PDIP
ADM691AN Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 16 Pin |
| Case/Package | PDIP-16 |
| Supply Voltage (DC) | 5.50V (max) |
| Operating Voltage | 4.25V (max) |
| Supply Current | 1.95 mA |
| Input Current | 200 mA |
| Power Dissipation | 600 mW |
| Threshold Voltage | 4.65 V |
| Reset Threshold Voltage (Min) | 4.5 V |
| Reset Threshold Voltage (Max) | 4.73 V |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 600 mW |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 4.75 V |
| Show | |
| Size-Length | 21.33 mm |
| Size-Width | 7.11 mm |
| Size-Height | 4.95 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | End of Life |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| Mil-Spec | No |
