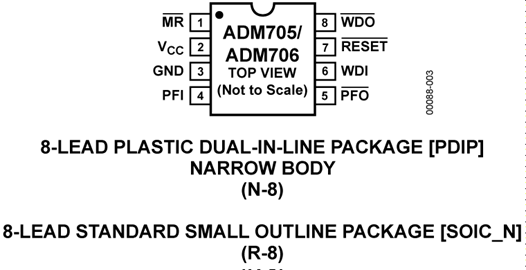

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ADM706 series Supervisory Circuit that can be suitable for monitoring 5V power supplies/batteries and microprocessor activity. The ADM705/ADM706 provides power-supply monitoring circuitry that generates a reset output during power-up, power-down and brownout conditions. The reset output remains operational with VCC as low as 1V. Independent watchdog monitoring circuitry is also provided. This is activated if the watchdog input has not been toggled within 1.60 seconds. In addition, there is a 1.25V threshold detector to warn of power failures, to detect low battery conditions or to monitor an additional power supply. An active low, debounced manual reset input (MR) is also included.
Debounced TTL/CMOS manual reset input (MR)
Independent watchdog timer
Voltage monitor for power-fail or low-battery warning
Superior upgrade for MAX705 to MAX708
190µA Quiescent current

Show

ADM706ARZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	1.00V (min)
Power Rating	470 mW
Output Current	20 mA
Supply Current	0.25 mA
Number of Positions	8 Position
Power Dissipation	470 mW
Threshold Voltage	4.4 V
Reset Threshold Voltage (Min)	4.25 V
Reset Threshold Voltage (Max)	4.5 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	470 mW
Supply Voltage	1V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	1 V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
