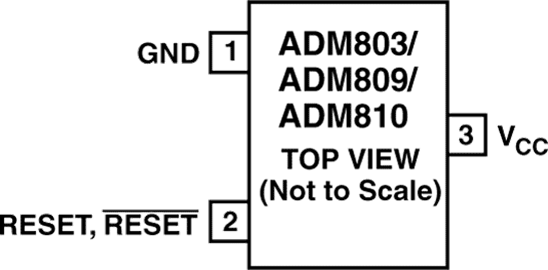

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Product Details
- The ADM809 supervisory circuit monitors the power supply voltage in microprocessor systems. It provides a reset output during power-up, power-down and brownout conditions. On power-up, an internal timer holds reset asserted for 240ms. This holds the microprocessor in a reset state until conditions have stabilized. The RESET output remains operational with VCC as low as 1V. The ADM809 provides an active-low reset signal RESET, and has a push-pull output stage.
- Seven reset threshold options are available. The reset comparator features built-in glitch immunity, making it immune to fast transients on VCC.
- The ADM809 is available in 3-lead SOT-23 and SC70 and consumes only 17µA, making it suitable for low power portable equipment.
- **Applications**
- Microprocessor systems
- Computers
- Controllers
- Intelligent instruments
- Automotive systems
- ### Features and Benefits
- Specified over Temperature
- Low Power Consumption (17 µA)
- Precision Voltage Monitor: 2.5 V, 3 V, 3.3 V, 5 V Options
- Reset Assertion Down to 1 V VCC
- 140 ms Min Power-On Reset
- Push-Pull RESET Output
- SC70 and SOT-23 Packages
ADM809 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Case/Package | SC-70 |
| Show | |
| Product Lifecycle Status | Active |
