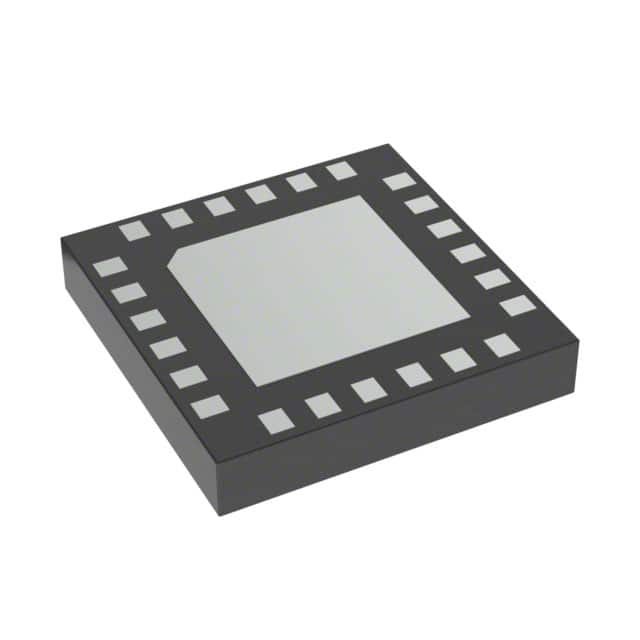

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Product Details
- The ADRF5720 is an ultrawideband, high accuracy 6-bit silicon digital attenuator, operating from 9 kHz to 40 GHz with 31.5 dB attenuation control range in 0.5 dB steps.
- The ADRF5720 offers excellent attenuation accuracy and high linearity with maximum input power handling of 27 dBm for all states.
- The ADRF5720 requires dual supply voltages, 3.3 V and −3.3 V. The device incorporates a driver that supports TTL-/CMOS-compatible serial and parallel controls.
- The ADRF5720 is unidirectional, with an radio frequency (RF) input and output internally matched to 50 Ω. It comes in a RoHS compliant, 4 mm × 4 mm, 24-lead land grid array (LGA) package.
- **Applications**
- Test instrumentation
- Military radios, radars, electronic counter measures (ECMs)
- Cellular infrastructure
- ### Features and Benefits
- Attenuation range: 0.5 dB steps to 31.5 dB
- Low insertion loss
- 2.1 dB at 20 GHz
- 3.0 dB at 30 GHz
- TBD at 40 GHz
- Excellent attenuation accuracy
- 0.2 ± 1% at 35 GHz
- TBD at 40 GHz
- Typical step error: less than ±0.35 dB
- Low phase shift error: 35° phase shift at 20 GHz
- High input linearity
- 0.1 dB power compression (P0.1dB)
- 30 dBm for insertion loss state
- 27 dBm for other states
- Third-order intercept (IP3): 50 dBm
- High power handling: 27 dBm
- RF settling time (0.1 dB of final RF output): 6.8 μs
- TTL-/CMOS-compatible serial and parallel controls
- Dual supply, no low frequency switching spurs
- ESD rating: Class 1B (1000 V HBM)
- 4 mm × 4 mm, 24-lead land grid array package
- Pin compatible with ADRF5730, fast switching version
ADRF5720BCCZN Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 24 Pin |
| Case/Package | VFLGA-24 |
| Power Rating | 500 mW |
| Number of Bits | 6 Bit |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Product Lifecycle Status | Pre-Release |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
