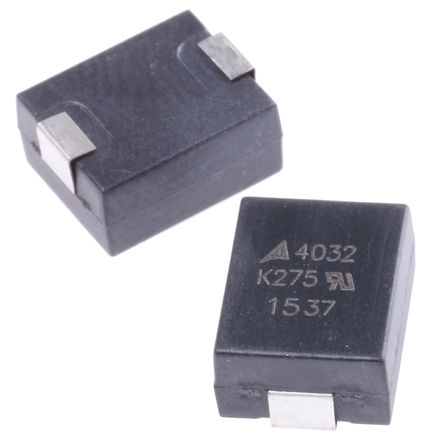

Image is for your reference only,please check specifications for details

B72660M0271K072 - Epcos
Manufacturer:
Epcos
ManyChip's Part#:
MC49602710
Category:
Varistor
Package:
4032
Datasheet:
Datasheet 3D Model
Description:
EPCOS B72660M0271K072 TVS Varistor, 275V, 350V, B726 Series, 710V, 4032, Metal Oxide Varistor (MOV)
Stock Locations:
Availability:
10,403 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.77

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The B72660M0271K072 is a Standard-series SMD Disk Varistor with UL94V-0 flame-retardant thermoplastic encapsulation and tinned copper wire terminals. Ceramic transient voltage suppressors. Suitable for lead-free soldering. Electrical equivalents to leaded types SIOV-S05/S07. Overvoltage protection and transient suppression in control electronics, detectors and sensors, touch screens, plug-in cards and remote controls.
Cylindrical varistor element
PSpice model

Show

B72660M0271K072 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	4032
Voltage Rating (DC)	350 V
Voltage Rating (AC)	275 V
Capacitance	95 pF
Clamping Voltage	710 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating (DC Max)	350 V
Voltage Rating (AC Max)	275 V
	Show
Size-Length	10.2 mm
Size-Width	8 mm
Size-Height	4.5 mm
Lead Length	30.0 mm
Size-Thickness	4.5 mm
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
