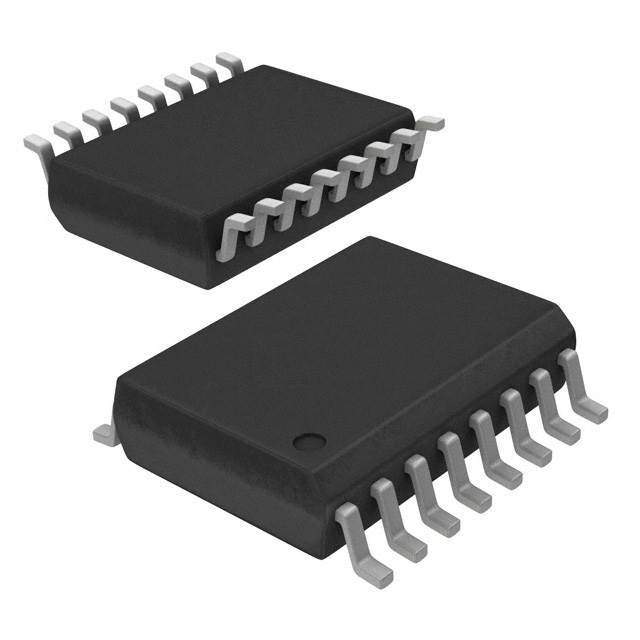

Image is for your reference only,please check specifications for details

ADS1201U - TI
Manufacturer:
TI
ManyChip's Part#:
MC26654583
Category:
Analog to Digital, ADC IC
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:
Analog to Digital Converter High Dynamic Range Delta-Sigma Modulator Single ADC Delta-Sigma 1KSPS 24Bit Serial 16Pin SOIC Tube
Stock Locations:
Availability:
2,592 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 462.8

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

If you require your analog signals to be converted into digital data then this ADS1201U ADC from Texas Instruments is perfect. Its maximum power dissipation is 40 mW. It has a differential input signal. This device is based on Delta-Sigma architecture. This device"s digital interface is serial (2-wire). This ADC has a resolution of 24bit. This ADC has an input voltage of ±5V/±20 V. This ADC has a temperature range of -40 °C to 85 °C.

Show

ADS1201U Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	4.75V (min)
Supply Current	4.60 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	16 Position
Number of Bits	24 Bit
Power Dissipation	25 mW
Sample Rate	1 ksps
Power Consumption	25 mW
Number of ADCs	1 ADC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	40 mW
Number of Input Channels	1 Channel
Supply Voltage	4.75V ~ 5.25V
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	4.75 V
	Show
Size-Length	10.28 mm
Size-Width	7.52 mm
Size-Height	2.35 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
