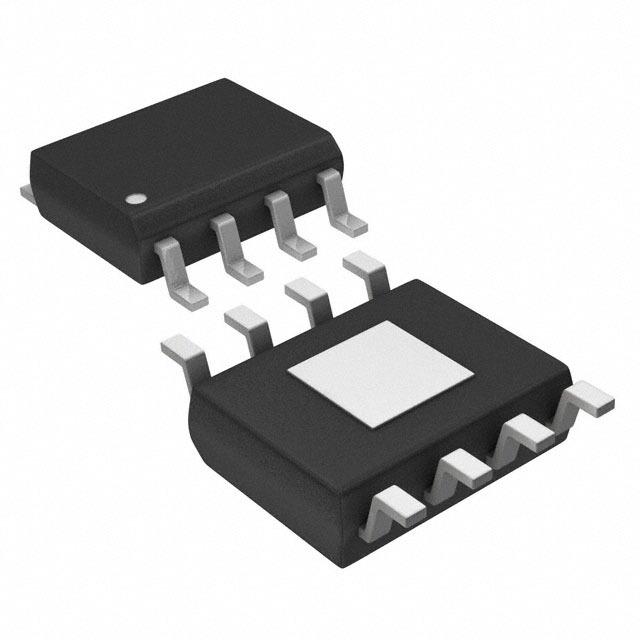

L7980A - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC56522303
Category:
DC to DC Converter
Package:
HSOP-8
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 4.5V to 28V Step Down Single-Out 0.6V to 28V 2A 8Pin HSOP EP Tube
Stock Locations:
Availability:
293 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.48

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The L7980A is a step-down Switching Regulator with a 2.5A (minimum) current limited embedded power MOSFET, so it is able to deliver up to 2A current to the load depending on the application conditions. The input voltage can range from 4.5 to 28V, while the output voltage can be set starting from 0.6V to VIN. Requiring a minimum set of external components, the device includes an internal 250kHz switching frequency oscillator that can be externally adjusted up to 1MHz.
Internal soft-start and enable
Voltage feed-forward
Zero load current operation
Overcurrent and thermal protection
100% Duty cycle of low dropout operation

Show

L7980A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	HSOP-8
Number of Outputs	1 Output
Output Voltage	0.6V ~ 28V
Output Current	2 A
Number of Positions	8 Position
Switching Frequency	1 MHz
Input Voltage (Max)	28 V
Input Voltage (Min)	4.5 V
Output Voltage (Max)	28 V
Output Voltage (Min)	600 mV
Output Current (Max)	2 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
	Show
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
