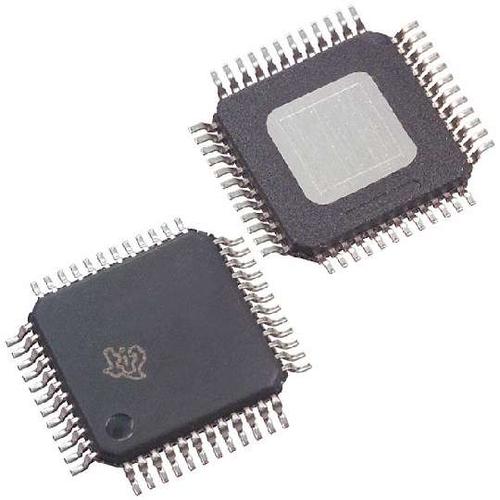

Image is for your reference only,please check specifications for details
- ADS1258MPHPTEP - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC79816807
-
Category:Analog to Digital, ADC IC
-
Package:TQFP-48
-
Datasheet:Datasheet 3D Model
-
Description:16Channel Single ADC Delta-Sigma 125KSPS 24Bit Serial 48Pin HTQFP EP T/R
-
Stock Locations:
-
Availability:297 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 40.44
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The ADS1258 is a 16-channel (multiplexed), low-noise, 24-bit, delta-sigma (ΔΣ) analog-to-digital converter (ADC) that provides single-cycle settled data at channel scan rates from 1.8k to 23.7k samples per second (SPS) per channel. A flexible input multiplexer accepts combinations of eight differential or 16 single-ended inputs with a full-scale differential range of 5 V or true bipolar range of ±2.5 V when operating with a 5-V reference. The fourth-order delta-sigma modulator is followed by a fifth-order sinc digital filter optimized for low-noise performance.
- FEATURES
- • 24 Bits, No Missing Codes
- • Fixed-Channel or Automatic Channel Scan
- • Fixed-Channel Data Rate: 125 kSPS
- • Auto-Scan Data Rate: 23.7 kSPS/Channel
- • Single-Conversion Settled Data
- • 16 Single-Ended or 8 Differential Inputs
- • Unipolar (5 V) or Bipolar (±2.5 V) Operation
- • Low Noise: 2.8 μVRMS at 1.8kSPS
- • 0.0003% Integral Nonlinearity
- • DC Stability (typical): 0.02 μV/°C Offset Drift, 0.4 ppm/°C Gain Drift
- • Open-Sensor Detection
- • Conversion Control Pin
- • Multiplexer Output for External Signal Conditioning
- • On-Chip Temperature, Reference, Offset, Gain,and Supply Voltage Readback
- • 42-mW Power Dissipation
- • Standby, Sleep, and Power-Down Modes
- • 8 General-Purpose Inputs/Outputs (GPIO)
- • 32.768-kHz Crystal Oscillator or External Clock
ADS1258MPHPTEP Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 48 Pin |
| Case/Package | TQFP-48 |
| Number of Circuits | 1 Circuit |
| Number of Channels | 8, 16 Channel |
| Power Dissipation | 42 mW |
| Power Consumption | 42 mW |
| Number of ADCs | 1 ADC |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 62 mW |
| Number of Input Channels | 16, 8 Channel |
| Show | |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
