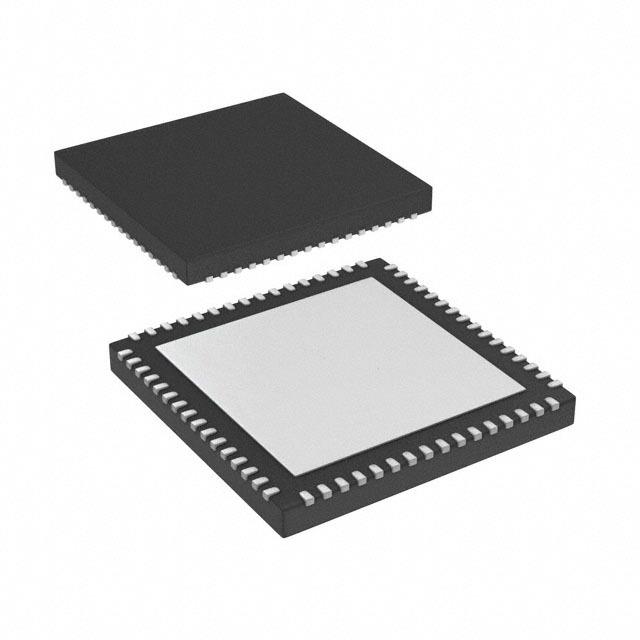

Image is for your reference only,please check specifications for details
- ADS62P44IRGCT - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC62967736
-
Category:Analog to Digital, ADC IC
-
Package:VQFN-64
-
Datasheet:Datasheet 3D Model
-
Description:Аналого-цифровой преобразователь, двухканальный, 14-разрядный, 105 Мвыб/с, с выбираемыми выходами DDR LVDS или CMOS. Двухканальный конвейерный АЦП, 105 Мвыб/с, 14-разрядный, параллельный/последовательный/LVDS, 64-контактный VQFN EP, лента и катушка
-
Stock Locations:
-
Availability:243 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 84.34
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- ADS62P4X is a dual channel 14-bit A/D converter family with maximum sample rates up to 125 MSPS. It combines high performance and low power consumption in a compact 64 QFN package. Using an internal sample and hold and low jitter clock buffer, the ADC supports high SNR and high SFDR at high input frequencies. It has coarse and fine gain options that can be used to improve SFDR performance at lower full-scale input ranges.
- FEATURES
- • Maximum Sample Rate: 125 MSPS
- • 14-Bit Resolution with No Missing Codes
- • 95 dB Crosstalk
- • Parallel CMOS and DDR LVDS Output Options
- • 3.5 dB Coarse Gain and Programmable Fine Gain up to 6 dB for SNR/SFDR Trade-Off
- • Digital Processing Block with:
- – Offset Correction
- – Fine Gain Correction, in Steps of 0.05 dB
- – Decimation by 2/4/8
- – Built-in and Custom Programmable 24-Tap Low-/High-/Band-Pass Filters
- • Supports Sine, LVPECL, LVDS and LVCMOS Clocks and Amplitude Down to 400 mVPP
- • Clock Duty Cycle Stabilizer
- • Internal Reference; Supports External Reference also
- • 64-QFN Package (9mm × 9mm)
- • Pin Compatible 12-Bit Family (ADS62P2X)
- APPLICATIONS
- • Wireless Communications Infrastructure
- • Software Defined Radio
- • Power Amplifier Linearization
- • 802.16d/e
- • Medical Imaging
- • Radar Systems
- • Test and Measurement Instrumentation
ADS62P44IRGCT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 64 Pin |
| Case/Package | VQFN-64 |
| Supply Current | 215 mA |
| Number of Circuits | 2 Circuit |
| Number of Channels | 2 Channel |
| Number of Bits | 14 Bit |
| Power Dissipation | 710 mW |
| Sample Rate | 105 Msps |
| Power Consumption | 700 mW |
| Number of ADCs | 2 ADC |
| Number of Inputs | 2 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 792 mW |
| Number of Input Channels | 2 Channel |
| Show | |
| Size-Width | 9 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | 3A991.c.3 |
| HK STC License | NLR |
