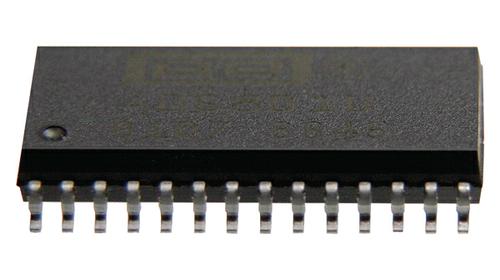

Image is for your reference only,please check specifications for details

ADS7805U - TI
Manufacturer:
TI
ManyChip's Part#:
MC12945741
Category:
Analog to Digital, ADC IC
Package:
SOIC-28
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS ADS7805U Analogue to Digital Converter, 16Bit, 100KSPS, Single, 4.75V, 5.25V, SOIC
Stock Locations:
Availability:
1,180 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 55.94

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ADS7805U is a complete 16-bit sampling Analog-to-digital Converter (ADC) using state-of-the-art CMOS structures. It contains a complete 16-bit, capacitor-based, successive approximation register (SAR) A/D converter with sample-and-hold (S/H), reference, clock, interface for microprocessor use and 3-state output drivers. The ADC is specified at a 100kHz sampling rate and ensured over the full temperature range. Laser-trimmed scaling resistors provide an industry-standard ±10V input range while the innovative design allows operation from a single 5V supply with power dissipation under 100mW.
Standard ±10V input range
Pin-compatible with 12-bit ADS7804
Uses internal or external reference
Full parallel data output
Green product and no Sb/Br

Show

ADS7805U Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	28 Pin
Case/Package	SOIC-28
Digital Logic Level	SAR
Supply Voltage (DC)	4.75V (min)
Operating Voltage	4.75V ~ 5.25V
Supply Current	16.0 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	28 Position
Number of Bits	16 Bit
Power Dissipation	100 mW
Sample Rate	100 ksps
Power Consumption	81.5 mW
Number of ADCs	1 ADC
Number of Inputs	1 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
Power Dissipation (Max)	100 mW
Number of Input Channels	1 Channel
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	4.75 V
	Show
Size-Length	18 mm
Size-Width	7.52 mm
Size-Height	2.35 mm
Operating Temperature	-25℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
