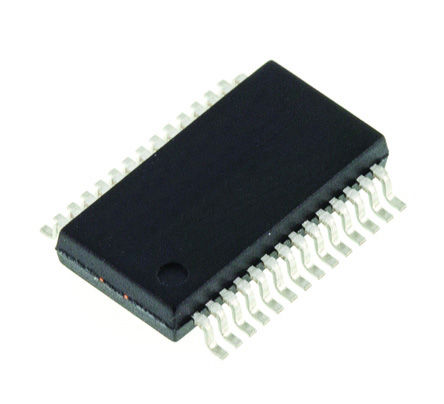

Image is for your reference only,please check specifications for details
- ADS7842E - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC40387688
-
Category:Analog to Digital, ADC IC
-
Package:SSOP-28
-
Datasheet:Datasheet 3D Model
-
Description:12Bit, 4Channel Parallel Output Sampling Analog-to-Digital Converter 28-SSOP -40℃ to 85℃
-
Stock Locations:
-
Availability:236 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 6.57
Updated at 31/10/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The ADS7842 is a complete, 4-channel, 12-bit Analog-to-Digital Converter (ADC). It contains a 12-bit, capacitorbased, Successive Approximation Register (SAR) ADC with a sample-and-hold amplifier, interface for microprocessor use, and parallel, 3-state output drivers. The ADS7842 is specified at a 200kHz sampling rate while dissipating only 2mW of power. The reference voltage can be varied from 100mV to VCC with a corresponding LSB resolution from 24µV to 1.22mV. The ADS7842 is tested down to 2.7V operation.
- Low power, high speed, and an onboard multiplexer make the ADS7842 ideal for battery-operated systems such as portable, multi-channel dataloggers and measurement equipment. The ADS7842 is available in an SSOP-28 package and is tested over the -40°C to +85°C temperature range.
ADS7842E Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 28 Pin |
| Case/Package | SSOP-28 |
| Digital Logic Level | SAR |
| Supply Voltage (DC) | 2.70V (min) |
| Supply Current | 550 µA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 4 Channel |
| Number of Bits | 12 Bit |
| Power Dissipation | 4.5 W |
| Sample Rate | 200 ksps |
| Power Consumption | 840 µW |
| Number of ADCs | 1 ADC |
| Number of Inputs | 4 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 4.5 mW |
| Number of Input Channels | 4 Channel |
| Input Voltage | 3.6V, 5.25V |
| Show | |
| Size-Length | 10.2 mm |
| Size-Width | 5.3 mm |
| Size-Height | 1.95 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
