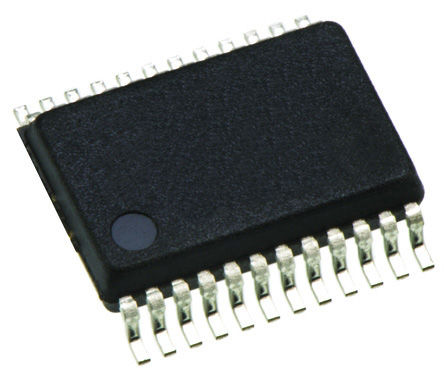

Image is for your reference only,please check specifications for details

ADS7861E - TI
Manufacturer:
TI
ManyChip's Part#:
MC31681729
Category:
Analog to Digital, ADC IC
Package:
SSOP-24
Datasheet:
Datasheet 3D Model
Description:
Dual, 500kHz, 12Bit, 2+2CH, Simultaneous Sampling Analog-To-Digital Converter 24-SSOP -40℃ to 125℃
Stock Locations:
Availability:
9,064 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.39

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ADS7861E is a 2-channel 12-bit Analog-to-digital Converter (ADC) with four fully differential input channels grouped into two pairs for high speed, simultaneous signal acquisition. Inputs to the sample-and-hold amplifiers are fully differential and are maintained differential to the input of the A/D converter. This provides excellent common-mode rejection of 80dB at 50kHz which is important in high noise environments. It offers a high-speed, dual serial interface and control inputs to minimize software overhead. The output data for each channel is available as a 12-bit word.
Fully differential inputs
No missing codes
SSI Serial interface
Green product and no Sb/Br

Show

ADS7861E Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	24 Pin
Case/Package	SSOP-24
Digital Logic Level	SAR
Supply Voltage (DC)	4.75V (min)
Supply Current	5.00 mA
Number of Circuits	2 Circuit
Number of Channels	4 Channel
Number of Positions	24 Position
Number of Bits	12 Bit
Power Dissipation	25 mW
Sample Rate	500 ksps
Power Consumption	25 mW
Number of ADCs	2 ADC
Number of Inputs	4 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	42.5 mW
Number of Input Channels	4 Channel
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	4.75 V
	Show
Size-Length	8.75 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
HK STC License	NLR
