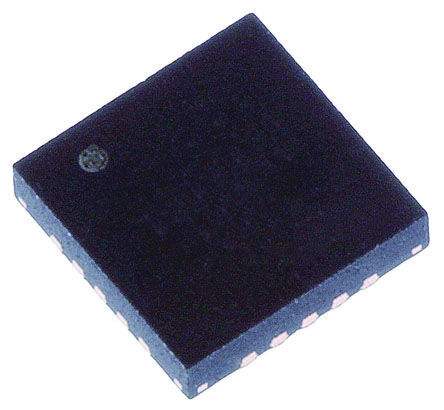

Image is for your reference only,please check specifications for details

ADS8028IRTJT - TI
Manufacturer:
TI
ManyChip's Part#:
MC5121052
Category:
Analog to Digital, ADC IC
Package:
QFN-20
Datasheet:
Datasheet 3D Model
Description:
12Bit, 8Channel, 1MSPS, SAR ADC with Internal Reference and Internal Temperature Sensor 20-QFN -40℃ to 125℃@
Stock Locations:
Availability:
323 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 8.17

Updated at 23/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ADS8028IRTJT is a 8-channel 12-bit Analog-to-digital Converter (ADC) capable of operating at sampling speeds up to 1MSPS. The device is based on a successive approximation register (SAR) core and provides an inherent sample-and-hold (SH) front-end. In addition to having 8 analog input channels, the ADC offers an internal temperature sensor with 0.25°C resolution and an internal voltage reference. A nine-channel internal multiplexer enables multiple channels to be selected that are indefinitely scanned in a sequential manner. A simple SPI-compatible serial interface provides easy communication and control between the device and host controller. The digital supply can operate from 1.65 to 5.25V, enabling direct interface with a wide range of processors and controllers. The device offers flexible power-down modes to save power when conversions are not being performed. The ADC is ideal for demanding measurement applications.
Outstanding performance
No missing codes
Highly integrated
High-resolution internal temperature sensor
Low-drift internal voltage reference
SPI™ compatible serial interface
Green product and no Sb/Br

Show

ADS8028IRTJT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	QFN-20
Supply Current	7.00 mA
Number of Circuits	1 Circuit
Number of Channels	8 Channel
Number of Positions	20 Position
Number of Bits	12 Bit
Power Dissipation	17 mW
Sample Rate	1 Msps
Power Consumption	17 mW
Number of ADCs	1 ADC
Number of Inputs	8 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Number of Input Channels	8 Channel
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	1.65 V
Input Voltage	2.5 V
	Show
Size-Length	4.15 mm
Size-Width	4.15 mm
Size-Height	0.75 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
