Description
- Product Details
- The ADT7301 is a complete temperature monitoring system in SOT-23 and MSOP packages. It contains a band gap temperature sensor and a 13-bit ADC to monitor and digitize the temperature reading to a resolution of 0.03125°C.
- The ADT7301 has a flexible serial interface that allows easy interfacing to most microcontrollers. The interface is compatible with SPI™, QSPI and MICROWIRE™ protocol and is also compatible with DSPs. The part features a standby mode that is controlled via the serial interface. The ADT7301"s wide supply voltage range, low supply current and SPI-compatible interface, make it ideal for a variety of applications, including personal computers, office equipment, automotive and domestic appliances. The ADT7301 is rated for operation over the −40°C to +150°C temperature range. It is not recommended to operate the device at temperatures above +125°C for greater than a total of 5% (5,000 hours) of the lifetime of the device. Exposure beyond this limit affects device reliability.
- **Product Highlights
- **
- 1. On-chip temperature sensor that allows an accurate measurement of the ambient temperature. The measurable temperature range is −40°C to +150°C.
- 2. Supply voltage of 2.7 V to 5.25 V.

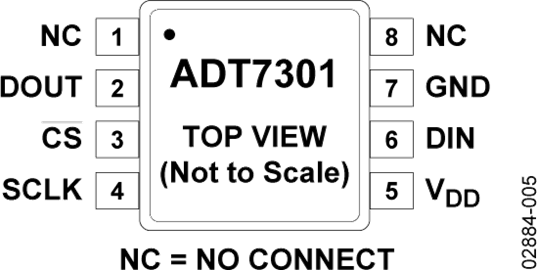

- 3. Space-saving 6-lead SOT-23 and 8-lead MSOP packages.
- 4. Typical temperature accuracy of ±0.5°C.
- 5. 13-bit temperature reading to 0.03125°C resolution.
- 6. Shutdown mode that reduces the power consumption to 4.88 μW with VDD = 3.3 V @ 1 SPS.
- 7. Compatible with AD7814.
- **
- **
- **Applications
- **
- Medical equipment
- Automotive
- Environmental controls
- Oil Termperature
- Hydraulic systems
- Cellular phones
- Hard disk drives
- Personal computers
- Electronic test equipment
- Office equipment
- Domestic appliances
- Process control
- ### Features and Benefits
- 13-Bit Temperature-to-Digital Converter
- -40°C to +150°C Operating Temperature Range
- ±0.5°C Typical Accuracy, ±1°C Max Accuracy
- Shutdown Current of 1 µA
- Power dissipation of 0.631 mW at VDD = 3.3 V
- SPI- and DSP-Compatible Serial Interface
- Shutdown Mode
- Space-Saving SOT-23 and MSOP Packages
- Pin-Compatible with the AD7814 Applications
ADT7301 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Show | |
| Product Lifecycle Status | Active |
