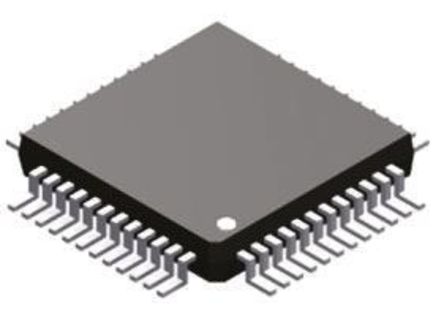

- ADUC7060BSTZ32 - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC288908
-
Category:Microcontroller, MCU IC
-
Package:LQFP-48
-
Datasheet:Datasheet 3D Model
-
Description:MCU 16Bit/32Bit ARM7TDMI RISC 32KB Flash 2.5V 48Pin LQFP Tray
-
Stock Locations:
-
Availability:276 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 12.85
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The ADUC7060BSTZ32 is a fully integrated 8kSPS 32-bit Precision Analog Microcontroller incorporates high performance multichannel sigma-delta (Σ-Δ) (Σ-Δ) ADCs and flash/EE memory on a single chip. The ADCs consist of a primary ADC with two differential pairs or four single-ended channels and an auxiliary ADC. The ADCs operate in single-ended or differential input mode. A single-channel buffered voltage output DAC is available on chip. The DAC output range is programmable to one of four voltage ranges. The device operates from an on-chip oscillator and a PLL generating an internal high frequency clock up to 10.24MHz. The ADuC7060 contains an advanced interrupt controller. The vectored interrupt controller (VIC) allows every interrupt to be assigned a priority level. It also supports nested interrupts to a maximum level of eight per IRQ and FIQ. When IRQ and FIQ interrupt sources are combined, a total of 16 nested interrupt levels is supported.
- Dual (24-bit) ADCs
- Single-ended and differential inputs
- Programmable ADC output rate (4Hz to 8kHz)
- Programmable digital filters
- Built-in system calibration
- Low power operation mode
- 2 Differential pairs or 4 single-ended channels
- PGA (1 to 512) input stage
- 30nVrms Noise
- Auxiliary (24-bit) ADC - 4 differential pairs or 7 single ended channels
- On-chip precision reference (±10 ppm/°C)
- Programmable sensor excitation current sources
- Single 14-bit voltage output DAC
- ARM7TDMI core, 32-bit RISC architecture
- JTAG port supports code download and debug
- Multiple clocking options
- 4kB (1kB x 32) SRAM
- SPI interface (5Mbps)
- UART serial I/O and I²C (master/slave)
- 4 x General-purpose (capture) timers including
ADUC7060BSTZ32 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 48 Pin |
| Case/Package | LQFP-48 |
| Frequency | 10 MHz |
| Operating Voltage | 2.375V ~ 2.625V |
| Supply Current | 6.00 mA |
| Number of Positions | 48 Position |
| Clock Speed | 10.0 MHz |
| RAM Memory Size | 4 KB |
| Number of Bits | 32 Bit |
| Resolution (Bits) | 24.0 Bit |
| Number of ADCs | 2 ADC |
| Number of Inputs and Outputs | 14 Input IO |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage (Max) | 2.62 V |
| Supply Voltage (Min) | 2.37 V |
| Show | |
| Size-Length | 7.2 mm |
| Size-Width | 7 mm |
| Size-Height | 1.45 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2014/06/16 |
