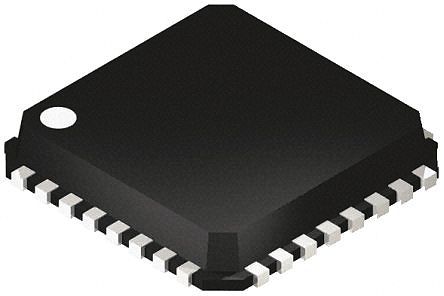

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ADUC7061BCPZ32 is a Fully Integrated 8kSPS 24-bit Data Acquisition System incorporating high performance multichannel Σ-Δ ADCs, 16-bit/32-bit ARM7TDMI® MCU and Flash/EE memory on a single chip. The ADCs consist of a primary ADC with two differential pairs or four single-ended channels and an auxiliary ADC with up to seven channels. The ADCs operate in single-ended or differential input mode. A single-channel buffered voltage output DAC is available on chip. The DAC output range is programmable to one of four voltage ranges. The ADuC7060 contains four timers. Timer1 is a wake-up timer with the ability to bring the part out of power saving mode. Timer2 is configurable as a watchdog timer. A 16-bit PWM with six output channels is also provided. The ADuC7060 contains an advanced interrupt controller. The vectored interrupt controller (VIC) allows every interrupt to be assigned a priority level. It also supports nested interrupts to a maximum level of eight per IRQ and FIQ.
Analogue input/output
Low power operation mode
On-chip precision reference (±10ppm/°C)
Programmable sensor excitation current source
Single 14-bit voltage output DAC
30nVrms Noise
Built-in system calibration
4x general-purpose (capture) timers
ESD sensitive device, take proper precaution while handling the device.

Show

ADUC7061BCPZ32 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	32 Pin
Case/Package	LFCSP-32
Frequency	10 MHz
Supply Voltage (DC)	2.38V (min)
Operating Voltage	2.375V ~ 2.625V
Number of Positions	32 Position
Clock Speed	10.0 MHz
RAM Memory Size	4 KB
Number of Bits	32 Bit
Resolution (Bits)	24.0 Bit
Number of ADCs	2 ADC
Number of Inputs and Outputs	14 Input IO
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	2.62 V
Supply Voltage (Min)	2.37 V
	Show
Size-Length	5 mm
Size-Width	4.75 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
