Description
- Product Details

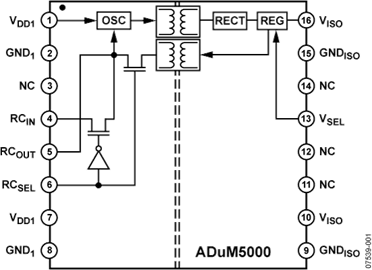

- The ADuM5000 is an isolated DC/DC converter based on the Analog Devices, Inc., _i_Coupler® technology. The DC/DC converter in this device provides regulated, isolated power in several combinations of input and output voltage as listed in Table 1.
- The Analog Devices chip-scale transformer _i_Coupler technology transfers isolated power in this DC/DC converter with up to 33% efficiency. The result is a small form factor, total isolation solution.
- Higher output power levels are obtained by using the ADuM5000 to augment the power output of ADuM5401, ADuM5402, ADuM5403, ADuM5404, and ADuM520x _i_Couplers with _iso_Power®.
- _iso_Power uses high frequency switching elements to transfer power through its transformer. Special care must be taken during printed circuit board (PCB) layout to meet emissions standards. Refer to the AN-0971 application note for board layout recommendations.
- **Applications**
- RS-232/RS-422/RS-485 transceivers
- Industrial field bus isolation
- Power supply start ups and gate drives
- Isolated sensor interface
- Industrial PLCs
- ### Features and Benefits
- For AEC-Q100 Automotive Qualified Device Specifications, Download ADuM5000W Data Sheet.
- isoPower® integrated isolated DC/DC converter
- Regulated 3.3V or 5V output
- Up to 500 mW output power
- 16-lead SOIC package with >8 mm creepage
- High temperature operation: 105°C maximum
- High common-mode transient immunity: >25 kV/μs
- Thermal Overload Protection
- Safety and regulatory approvals
- UL recognition
- 2500 V rms for 1 minute per UL 1577
- CSA Component Accept
- Notice #5A (pending)
- VDE cert of conformity (pending)
- DIN V VDE V 0884-10
- (VDE V 0884-10): 2006-12
- VIORM = 560 V peak
ADUM5000WARWZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | SOIC-16 |
| Number of Outputs | 1 Output |
| Output Voltage | 5 V |
| Number of Positions | 16 Position |
| Output Power | 400 mW |
| Isolation Voltage | 2.5 kV |
| Switching Frequency | 180000 kHz |
| Input Voltage (Max) | 5.5 V |
| Input Voltage (Min) | 2.7 V |
| Output Current (Max) | 0.1 A |
| Input Power (Max) | 0.4 W |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 5.5 V |
| Show | |
| Size-Width | 7.6 mm |
| Size-Height | 2.35 mm |
| Operating Temperature | -40℃ ~ 105℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
