Description

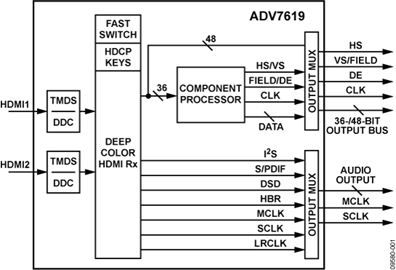

- GENERAL DESCRIPTION
- The ADV7619 is a high quality, two input, one output (2:1) multiplexed High-Definition Multimedia Interface (HDMI®) receiver. The ADV7619 is offered in professional (no HDCP keys) and commercial versions. The operating temperature range is 0°C to 70°C.
- The ADV7619 incorporates a dual input HDMI-capable receiver that supports all mandatory 3D TV formats defined in the HDMI 1.4a specification, HDTV formats up to 1080p 36-bit Deep Color/2160p 8-bit, and display resolutions up to 4k× 2k (3840 × 2160 at 30 Hz). It integrates an HDMI CEC controller that supports the capability discovery and control (CDC) feature.
- The ADV7619 incorporates Xpressview™ fast switching on both input HDMI ports. Using the Analog Devices, Inc., hardware based HDCP engine to minimize software overhead, Xpressview
- technology allows fast switching between both HDMI input ports in less than 1 sec.
- FEATURES
- High-Definition Multimedia Interface (HDMI®) 1.4a features supported
- All mandatory and additional 3D video formats supported Extended colorimetry, including sYCC601, Adobe® RGB, Adobe YCC601, xvYCC extended gamut color CEC 1.4-compatible
- HDMI 3 GHz receiver
- 297 MHz maximum TMDS clock frequency
- Supports 4k × 2k resolution
- Xpressview fast switching of HDMI ports
- Up to 48-bit Deep Color with 36-/30-/24-bit support
- High-bandwidth Digital Content Protection (HDCP) 1.4 support with internal HDCP keys
- HDCP repeater support: up to 127 KSVs supported
- Integrated CEC controller
- Programmable HDMI equalizer
- 5 V detect and Hot Plug assert for each HDMI port
- Audio support
- Audio support including high bit rate (HBR) and Direct Stream Digital (DSD)
- S/PDIF (IEC 60958-compatible) digital audio support
- Supports up to four I2S outputs
- Advanced audio mute feature
- Dedicated, flexible audio output port
- Super Audio CD® (SACD) with DSD output interface
- HBR audio
- Dolby® TrueHD
- DTS-HD Master Audio™
- General
- Interrupt controller with 2 interrupt outputs
- Standard identification (STDI) circuit
- Highly flexible, 48-bit pixel output interface
- 36-bit output for resolutions up to 1080p Deep Color
- 2 × 24-bit pass-through outputs for HDMI formats greater than 2.25 GHz
- Internal EDID RAM
- Any-to-any, 3 × 3 color space conversion (CSC) matrix
- 128-lead TQFP_EP,14 mm × 14 mm package
- APPLICATIONS
- Projectors
- Video conferencing
- HDTV
- AVR, HTiB
- Soundbar
- Video switch
ADV7619 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Show | |
| Product Lifecycle Status | Recommended for New Designs |
