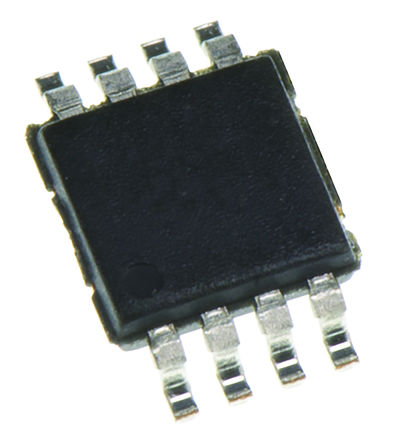

Image is for your reference only,please check specifications for details

ADXL321JCP - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC61507526
Category:
Acceleration Sensor, Accelerometer
Package:
LFCSP-16
Datasheet:
Datasheet 3D Model
Description:
Accelerometer Dual ±18g 2.5V/3.3V/5V 51mV/g to 63mV/g 16Pin LFCSP EP
Stock Locations:
Availability:
273 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 39.05

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

GENERAL DESCRIPTION
The ADXL321 is a small and thin, low power, complete dual axis accelerometer with signal conditioned voltage outputs, which is all on a single monolithic IC. The product measures acceleration with a full-scale range of ±18 g (typical). It can also measure both dynamic acceleration (vibration) and static acceleration (gravity).
The ADXL321’s typical noise floor is 320 µg/√Hz, allowing signals below 3 mg to be resolved in tilt-sensing applications using narrow bandwidths (<50 Hz).
The user selects the bandwidth of the accelerometer using capacitors CX and CY at the XOUT and YOUT pins. Bandwidths of 0.5 Hz to 2.5 kHz may be selected to suit the application.
The ADXL321 is available in a very thin 4 mm × 4 mm × 1.45 mm, 16-lead, plastic LFCSP.
FEATURES
Small and thin
4 mm × 4 mm × 1.45 mm LFCSP package
3 mg resolution at 50 Hz
Wide supply voltage range: 2.4 V to 6 V
Low power: 350 µA at VS = 2.4 V (typ)
Good zero g bias stability
Good sensitivity accuracy
X-axis and Y-axis aligned to within 0.1° (typ)
BW adjustment with a single capacitor
Single-supply operation
10,000 g shock survival
Compatible with Sn/Pb and Pb-free solder processes
APPLICATIONS
Vibration monitoring and compensation
Abuse event detection
Sports equipment

Show

ADXL321JCP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	LFCSP-16
Frequency	5.50 kHz
Supply Voltage (DC)	6.00V (max)
Supply Current	490 µA
Number of Positions	16 Position
Bandwidth	2.5 kHz
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-20 ℃
Supply Voltage	2.4V ~ 6V
Supply Voltage (Max)	6 V
Supply Voltage (Min)	2.4 V
	Show
Size-Length	4.00 mm
Size-Width	4.00 mm
Size-Height	1.45 mm
Operating Temperature	-20℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	Compliant with Exemption
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
