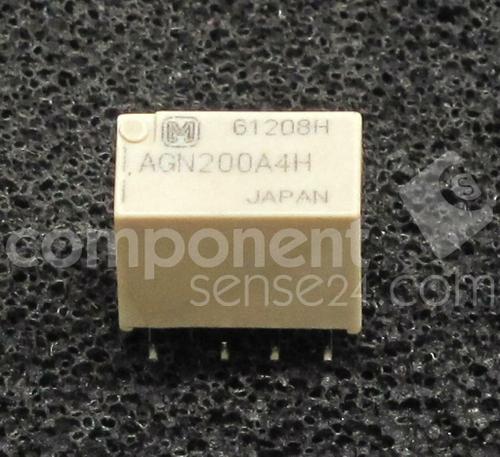

Image is for your reference only,please check specifications for details
- AGN200A4HZ - Panasonic
-
Manufacturer:Panasonic
-
ManyChip's Part#:MC29272333
-
Category:Industrial Relay
-
Package:-
-
Datasheet:Datasheet 3D Model
-
Description:Electromechanical Relay 4.5VDC 145Ω 1A DPDT(10.6x7.4x10)mm SMD General Purpose Relay
-
Stock Locations:
-
Availability:18 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.91
Updated at 23/10/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- AGN Series High Sensitivity 1 A DPDT 4.5 VDC Surface Mount Signal Relay
AGN200A4HZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | - |
| Voltage Rating (DC) | 110 V |
| Voltage Rating (AC) | 125 V |
| Contacts Type | DPDT |
| Power Consumption | 140 mW |
| Contact Current Rating | 1 A |
| Coil Voltage | 4.5 VDC |
| Coil Current | 31 mA |
| Coil Resistance | 145 Ω |
| Current Rating (Max) | 1 A |
| Coil Voltage (DC) | 4.5 V |
| Coil Power | 140 mW |
| Input Power (Max) | 30W, 37.5VA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Length | 10.6 mm |
| Size-Width | 7.4 mm |
| Size-Height | 10 mm |
| Contact Material | Silver Palladium |
| Weight | 0.4535924 kg |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536490050 |
| ECCN Code | EAR99 |
