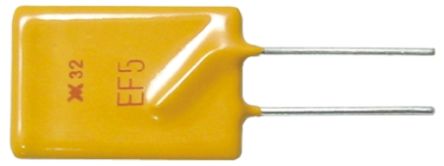

Image is for your reference only,please check specifications for details
- AHEF500 - Littelfuse
-
Manufacturer:Littelfuse
-
ManyChip's Part#:MC140217558
-
Category:Fuse
-
Package:Radial
-
Datasheet:Datasheet 3D Model
-
Description:PTC-предохранитель с автоматическим восстановлением 5 A (рабочий ток) 10 A (ток срабатывания) 32 В постоянного тока 100 А 5,3 Вт 9 с 0,015 Ом радиальный 14 × 3,8 × 24,1 мм оптом
-
Stock Locations:
-
Availability:496 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.99
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Полимерный PTC-предохранитель с автоматическим восстановлением 32 В 5 А Ih, сквозное отверстие, радиальный, дисковый
AHEF500 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Case/Package | Radial |
| Time to Trip | 9 s |
| Power Dissipation | 5.3 W |
| Holding Current | 5 A |
| Trip Current | 10 A |
| Operating Temperature (Max) | 125 ℃ |
| Voltage Rating | 32 VDC |
| Show | |
| Size-Height | 24.1 mm |
| Cord Length | 11.5 m |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
