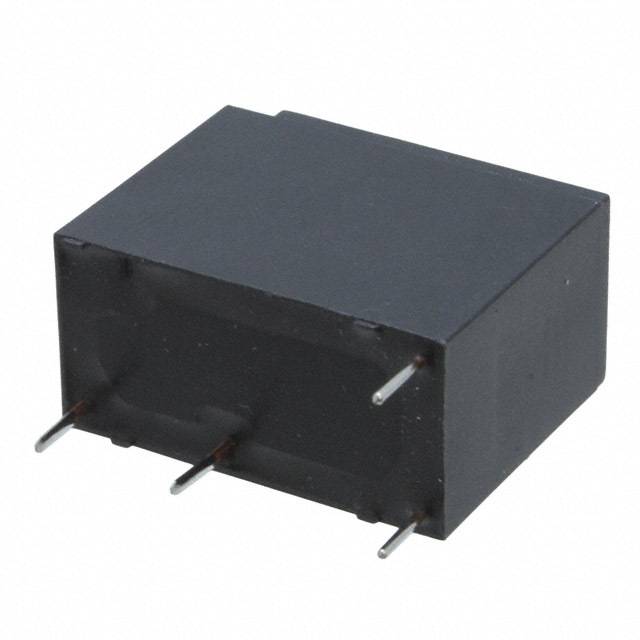

Image is for your reference only,please check specifications for details
- ALQ312 - Panasonic
-
Manufacturer:Panasonic
-
ManyChip's Part#:MC15025943
-
Category:Power Relay
-
Package:ThroughHole
-
Datasheet:Datasheet 3D Model
-
Description:Electromechanical Relay 12VDC 720Ω 10(NO)/3(NC)A SPST-NO (( 20mm 10mm 16mm)) THT Power Relay
-
Stock Locations:
-
Availability:6 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.4
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The ALQ series Small Power Relay with 1-form-A/1-form-C contacts. It offers surge 8000V and high breakdown voltage 4000V (between contact and coil).
- Compact with high capacity
- Miniature size and small
- Class-F coil is available
ALQ312 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 4 Pin |
| Case/Package | ThroughHole |
| Voltage Rating (AC) | 250 V |
| Current Rating | 10 A |
| Contacts Type | SPST-NO |
| Power Consumption | 200 mW |
| Contact Current Rating | 10 A |
| Coil Voltage | 12 VDC |
| Coil Current | 16.7 mA |
| Coil Resistance | 720 Ω |
| Coil Voltage (DC) | 12 V |
| Coil Power | 200 mW |
| Input Power (Max) | 150W, 1.25KVA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating (AC Max) | 250 V |
| Show | |
| Size-Length | 20 mm |
| Size-Width | 10 mm |
| Size-Height | 16 mm |
| Contact Material | Silver Nickel |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536490050 |
| ECCN Code | EAR99 |
