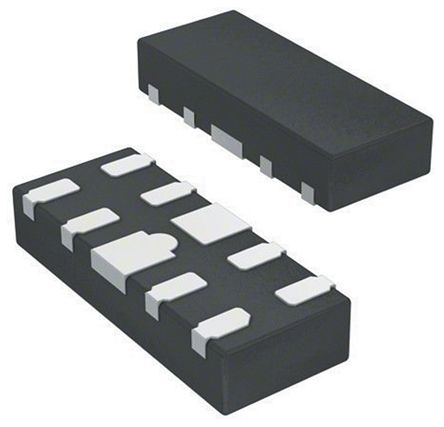

Image is for your reference only,please check specifications for details

TS3A5223RSWR - TI
Manufacturer:
TI
ManyChip's Part#:
MC1029858
Category:
Analog Switch Ic, Analog Switch Multiplexer
Package:
UQFN-10
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TS3A5223RSWR Analogue Switch, Dual Channel, SPDT, 2Channels, 1.2Ω, 1.65V to 3.6V, UQFN, 10Pins
Stock Locations:
Availability:
951 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.2

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TS3A5223RSWR is a single-pole double-throw (SPDT) dual bidirectional Analog Switch with break-before-make and bidirectional signal switching capability. The TS3A5223 can be used as a dual 2:1 multiplexer or a 1:2 dual de-multiplexer. It offers very low ON resistance, very low THD, channel-to-channel crosstalk and very high OFF isolation. Its control logic supports 1 to 3.6V CMOS logic levels. The logic interface allows direct interface with a wide range of CPUs and microcontrollers without increasing the current drawn from supply (ICC) and thus lowering power consumption.
Low on-resistance
1V Compatible logic interface
80MHz High switch bandwidth
0.01% THD across entire band
Specified min Break-before-make
Bi-directional switching
-75dB Channel-to-channel cross talk
-70 dB Channel-to-channel off isolation of very low power dissipation and leakage currents
ESD Protection on all pins
Green product and no Sb/Br

Show

TS3A5223RSWR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	UQFN-10
Number of Outputs	4 Output
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	10 Position
Number of Bits	2 Bit
Voltage Nodes	1.80 V, 2.50 V, 3.00 V, 3.30 V
Power Dissipation	0.43 W
Bandwidth	80.0 MHz
Number of Inputs	2 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	80 MHz
Power Dissipation (Max)	1075 mW
Supply Voltage	1.65V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	1.65 V
	Show
Size-Length	1.85 mm
Size-Width	1.45 mm
Size-Height	0.5 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
