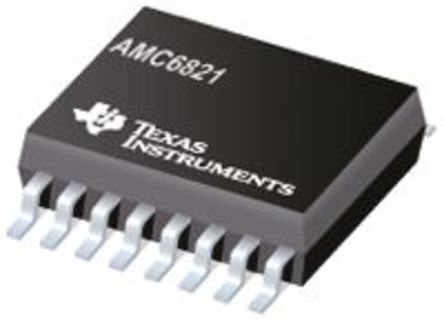

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The AMC6821SDBQ is an Intelligent Temperature Monitor and Pulse-Width Modulation (PWM) Fan Controller. Using either a low-frequency or a high-frequency PWM signal, this device can simultaneously drive a fan, monitor remote sensor diode temperatures and measure and control the fan speed so that it operates with minimal acoustic noise at the lowest possible speed. The AMC6821 has three fan control modes, auto temperature-fan mode, software-RPM mode and software-DCY mode. Each mode controls the fan speed by changing the duty cycle of a PWM output. All of the alarm thresholds are set through the device registers.
- Remote temperature sensor - ±2°C Accuracy, 0.125°C Resolution
- Local temperature sensor - ±2°C Accuracy, 0.125°C Resolution
- PWM controller
- 10 to 40kHz PWM frequency range
- 0% to 100%, 8-bit Duty cycle
- Automatic fan speed control loops
- SMBus interface
AMC6821SDBQ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | SSOP-16 |
| Supply Voltage (DC) | 3.00 V |
| Number of Outputs | 1 Output |
| Output Voltage | 400 mV |
| Output Current | 6 mA |
| Supply Current | 1.1 mA |
| Number of Positions | 16 Position |
| Number of Bits | 8 Bit |
| Power Dissipation | 5 mW |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 5 mW |
| Accuracy | ±2 ℃ |
| Supply Voltage | 2.7V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 2.7 V |
| Show | |
| Size-Length | 5 mm |
| Size-Width | 4 mm |
| Size-Height | 1.5 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
