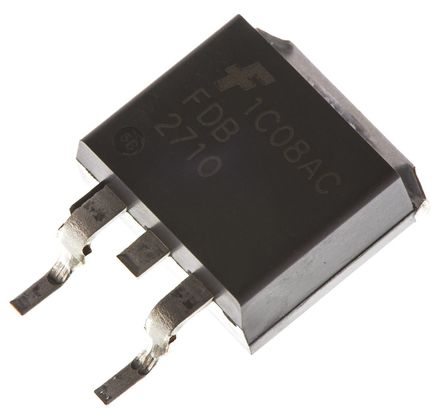

Image is for your reference only,please check specifications for details

FDB2710 - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC11856866
Category:
MOSFET, MOSFET Transistor
Package:
TO-263-3
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR FDB2710 MOSFET Transistor, N Channel, 50A, 250V, 0.0363Ω, 10V, 4V
Stock Locations:
Availability:
1,426 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.09

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FDB2710 is a N-channel MOSFET produced using Fairchild Semiconductor"s PowerTrench® process. It has been tailored to minimize the ON-state resistance while maintaining superior switching performance. It is suitable for use in synchronous rectification and battery protection circuit.
High performance Trench technology for extremely low RDS (ON)
Low gate charge
High power and current handing capability

Show

FDB2710 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	TO-263-3
Voltage Rating (DC)	250 V
Current Rating	50.0 A
Power Rating	260 W
Number of Positions	2 Position
Drain to Source Resistance (on) (Rds)	0.0363 Ω
Polarity	N-Channel
Power Dissipation	260 W
Threshold Voltage	4 V
Input Capacitance	7.28 nF
Gate Charge	101 nC
Drain to Source Voltage (Vds)	250 V
Breakdown Voltage (Drain to Source)	250 V
Breakdown Voltage (Gate to Source)	250 V
Continuous Drain Current (Ids)	50.0 A
Rise Time	252 ns
Input Capacitance (Ciss)	7280pF @25V(Vds)
Input Power (Max)	260 W
Fall Time	154 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	260 W
	Show
Size-Length	10.67 mm
Size-Width	11.33 mm
Size-Height	4.83 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
