Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 3 Pin |

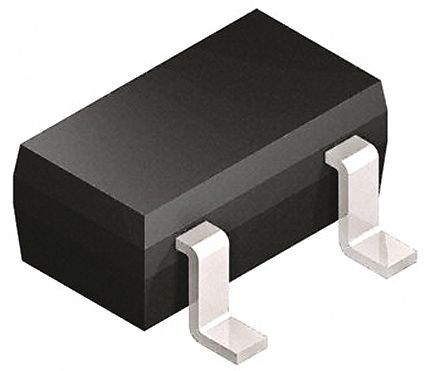

Case/Package | SOT-23-3 |
Frequency | 150 MHz |
Voltage Rating (DC) | -125 V |
Current Rating | -800 mA |
Polarity | PNP |
Power Dissipation | 330 mW |
Breakdown Voltage (Collector to Emitter) | 125 V |
Continuous Collector Current | 0.8A |
hFE Min | 63 |
Operating Temperature (Max) | 150 ℃ |
Power Dissipation (Max) | 330 mW |
Show | |
Size-Length | 2.9 mm |
Size-Width | 1.3 mm |
Size-Height | 0.9 mm |
Product Lifecycle Status | End of Life |
Packaging | Tape |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
REACH SVHC Compliance | No SVHC |
