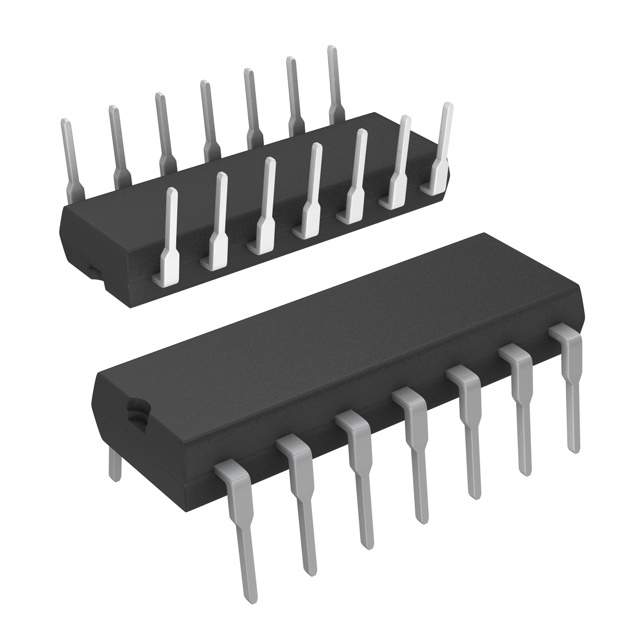

Image is for your reference only,please check specifications for details
- L6386E - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC86480223
-
Category:FET Driver
-
Package:PDIP-14
-
Datasheet:Datasheet 3D Model
-
Description:Driver 600V 0.65A 2Out Hi/Lo Side Half Brdg Non-Inv 14Pin PDIP Tube
-
Stock Locations:
-
Availability:246 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.98
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The L6386E is a high voltage gate driver, manufactured with the BCD™ “offline” technology, and able to drive simultaneously one high and one low-side power MOSFET or IGBT device. The high-side (floating) section is able to work with voltage rail up to 600 V. Both device outputs can independently sink and source 650 mA and 400 mA respectively and can be simultaneously driven high in order to drive asymmetrical half-bridge configurations.
- The L6386E device provides two input pins, two output pins and an enable pin (SD), and guarantees the outputs switch in phase with inputs. The logic inputs are CMOS/TTL compatible to ease the interfacing with controlling devices.
- The L6386E integrates a comparator (inverting input internally referenced to 0.5 V) that can be used to protect the device against fault events, like the overcurrent. The DIAG output is a diagnostic pin, driven by the comparator, and used to signal a fault event occurrence to the controlling device.
- The bootstrap diode is integrated in the driver allowing a more compact and reliable solution.
- The L6386E device features the UVLO protection on both supply voltages (VCC and VBOOT) ensuring greater protection against voltage drops on the supply lines.
- The device is available in a DIP-14 tube and SO-14 tube, and tape and reel packaging options.
- **Key Features**
- High voltage rail up to 600 V
- dV/dt immunity ± 50 V/nsec in full temperature range
- Driver current capability:
- 400 mA source
- 650 mA sink
- Switching times 50/30 nsec rise/fall with 1 nF load
- CMOS/TTL Schmitt trigger inputs with hysteresis and pull-down
- Undervoltage lockout on lower and upper driving section
- Integrated bootstrap diode
- Outputs in phase with inputs
L6386E Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 14 Pin |
| Case/Package | PDIP-14 |
| Rise/Fall Time | 50ns, 30ns |
| Number of Outputs | 2 Output |
| Power Dissipation | 750 mW |
| Rise Time | 50 ns |
| Output Current (Max) | 0.65 A |
| Fall Time | 30 ns |
| Fall Time (Max) | 30 ns |
| Fall Time (Max) | 50 ns |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -45 ℃ |
| Power Dissipation (Max) | 750 mW |
| Supply Voltage | 17 V |
| Show | |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
