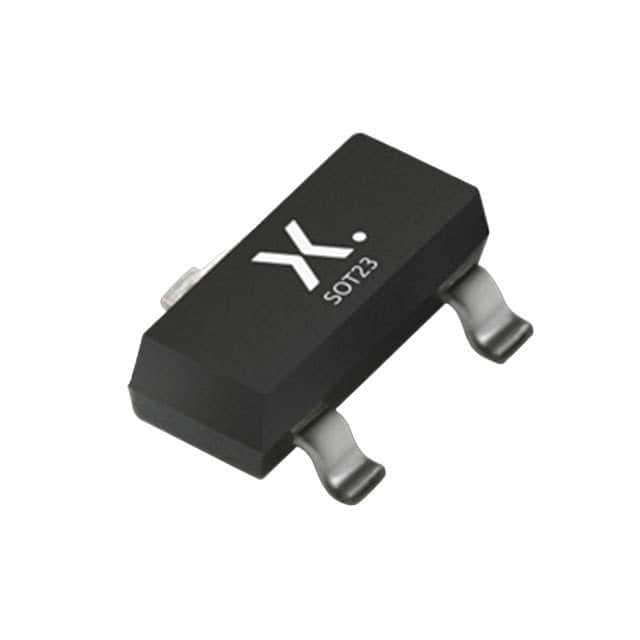

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

N-Channel 60V 190mA (Ta), 300mA (Tc) 265mW (Ta), 1.33W (Tc) Surface Mount TO-236AB

Show

2N7002NXAKR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Case/Package	TO-236
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	3 Ω
Power Dissipation	265 mW
Threshold Voltage	1.6 V
Input Capacitance	15 pF
Drain to Source Voltage (Vds)	60 V
Operating Temperature (Max)	150 ℃
	Show
Operating Temperature	150 ℃
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
