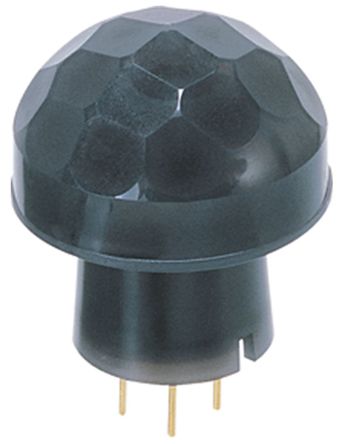

Image is for your reference only,please check specifications for details

AMN31111 - Panasonic
Manufacturer:
Panasonic
ManyChip's Part#:
MC1143959
Category:
Motion Sensor
Package:
TO-5
Datasheet:
Datasheet 3D Model
Description:
PANASONIC ELECTRIC WORKS AMN31111 PIR Sensor, NaPiOn, Black, Digital, PCB, 5m, 3VDC, 6VDC, 100°, AMN 2,3,4 Series
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AMN31111 from Panasonic is a standard detection type passive infrared motion sensor in TO-5 package. This sensor detects change in infrared radiation which occurs, when there is a movement by a person or object by the change in surrounding temperature. There are several conditions to sense target such as temperature difference between target and surroundings should be 4°C, movement speed is 0.8 to 1.2m/s and target size is 700mm x 250mm. Typical applications include lighting, Anti crime devices, home appliances, commercial equipments and audio and visual devices.
Simplified digital output circuitry
Current consumption is 170µA
Black lens colour
Lens material is polyethylene
maximum detection range is 5m
Operating voltage range from 3VDC to 6VDC
Output current is 100µA
Noise withstanding capability
Built-in amplifier for easy use
Maximum circuit stability time is 30s
The sensor may be damaged by ±200V of static electricity. Avoid direct hand contact with the pins and be very careful when operating the product.
