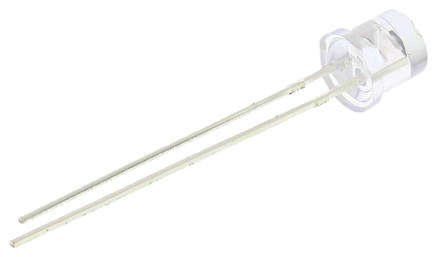

Image is for your reference only,please check specifications for details

AMS302 - Panasonic
Manufacturer:
Panasonic
ManyChip's Part#:
MC32489486
Category:
Optical Sensor
Package:
Radial
Datasheet:
Datasheet 3D Model
Description:
PANASONIC ELECTRIC WORKS AMS302 Ambient Light Sensor, High Sensitivity, Through Hole, 1.5VDC to 6VDC
Stock Locations:
Availability:
313 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.45

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AMS302 is a photo IC type high sensitive Light Sensor features built-in optical filter for spectral response similar to that of the human eye, photocurrent is proportional to illumination (linear output) and uses environmentally friendly silicon chips. Suitable for use with brightness detection for LCD backlight control for LCD devices (LCD TVs, car navigation systems and mobile PCs).
-30 to 85°C Operating temperature range

Show

AMS302 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	Radial
Output Current	260 µA
Number of Positions	2 Position
Wavelength	580 nm
Peak Wavelength	580 nm
Power Dissipation	40 mW
Rise Time	8.5 ms
Fall Time	8.5 ms
Fall Time (Max)	8.5 ms
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-30 ℃
Power Dissipation (Max)	40 mW
Supply Voltage	1.5V ~ 6V
Supply Voltage (Max)	6 V
Supply Voltage (Min)	1.5 V
	Show
Size-Length	5.8 mm
Size-Width	5.8 mm
Size-Height	5.3 mm
Operating Temperature	-30℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bag
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8541600080
ECCN Code	EAR99
