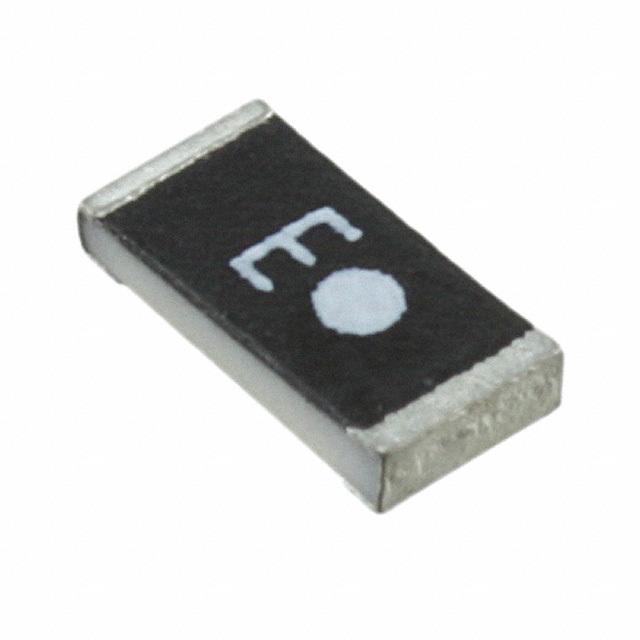

2.4GHz Bluetooth, WLAN, Zigbee™ Chip RF Antenna 2.335GHz ~ 2.565GHz 1.69dBi Solder Surface Mount

Show

ANT3216A063R2400A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SMD
Frequency	2.45 GHz
Power Rating	1 W
Bandwidth	230 MHz
Gain	1.69 dB
Input Power (Max)	1000 mW
Input Power (Max)	1 W
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	3.05 mm
Size-Width	1.55 mm
Size-Height	0.55 mm
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2016/06/20
ECCN Code	EAR99
