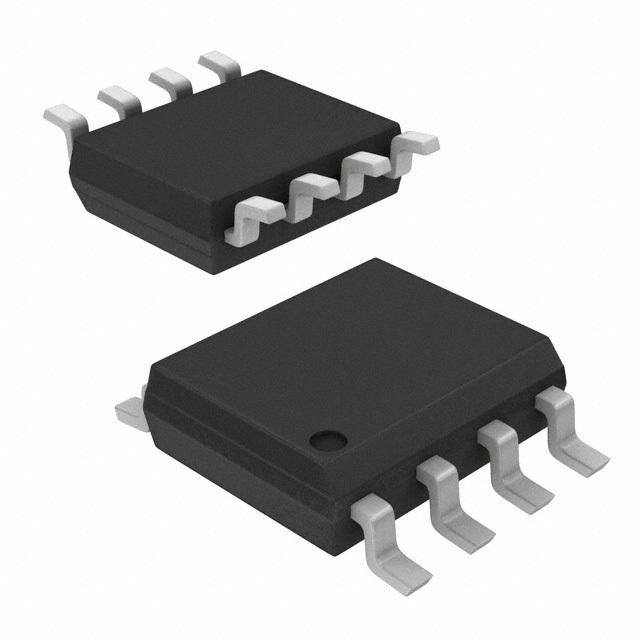

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

General Description
The AO4612 uses advanced trench technology MOSFETs to provide excellent RDS(ON)and low gate charge. The complementary MOSFETs may be used in H-bridge, Inverters and other applications.
Features
n-channel p-channel
VDS(V) = 60V -60V
ID= 4.5A (VGS=10V) -3.2A (VGS= -10V)
RDS(ON) RDS(ON)
< 56mΩ(VGS=10V) < 105mΩ(VGS= -10V)
< 77mΩ(VGS=4.5V) < 135mΩ(VGS= -4.5V)
100% Rg tested

Show

AO4612 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Power Rating	1.28 W
Polarity	N+P
Power Dissipation	2 W
Drain to Source Voltage (Vds)	60 V
Continuous Drain Current (Ids)	4.5A/3.2A
Rise Time	2.3 ns
Input Capacitance (Ciss)	540pF @30V(Vds)
Input Power (Max)	2 W
Fall Time	1.9 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2 W
	Show
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
