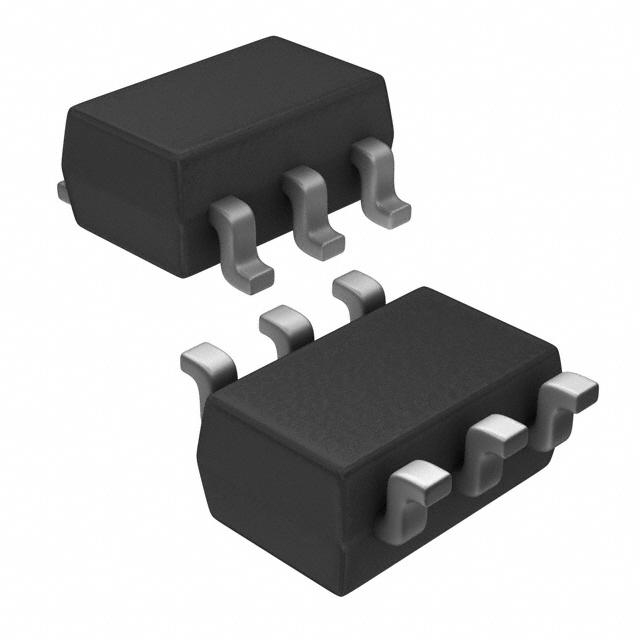

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

AO6409A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	TSOP-6
Power Rating	1.3 W
Polarity	P-CH
Power Dissipation	2.1W (Ta)
Drain to Source Voltage (Vds)	20 V
Continuous Drain Current (Ids)	5.5A
Input Capacitance (Ciss)	905pF @10V(Vds)
Input Power (Max)	2.1 W
Power Dissipation (Max)	2.1W (Ta)
	Show
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
