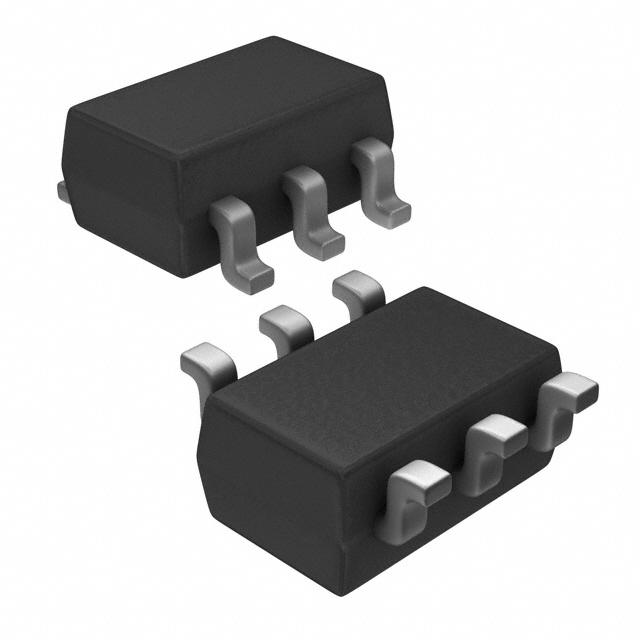

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Dual N-Channel Enhancement Mode Field Effect Transistor General Description The AO6800 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.5V. This device is suitable for use as a load switch or in PWM applications

Show

AO6800 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	SOT-457
Power Rating	0.73 W
Polarity	N-CH
Drain to Source Voltage (Vds)	30 V
Continuous Drain Current (Ids)	3.4A
Input Capacitance (Ciss)	235pF @15V(Vds)
Input Power (Max)	1.15 W
Power Dissipation (Max)	1.15 W
	Show
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
