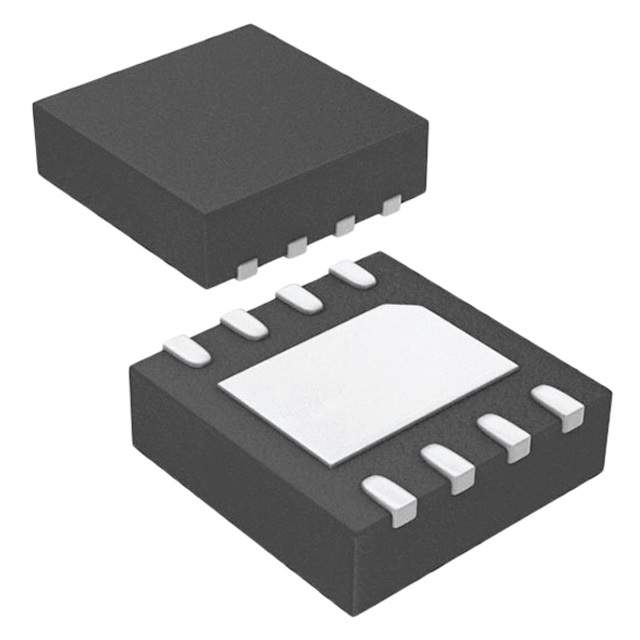

Image is for your reference only,please check specifications for details
- AOZ1281DI - Alpha & Omega Semiconductor
-
Manufacturer:Alpha & Omega Semiconductor
-
ManyChip's Part#:MC3064972
-
Category:DC to DC Converter
-
Package:DFN-8
-
Datasheet:Datasheet 3D Model
-
Description:Conv DC-DC 3V to 26V Step Down Single-Out 0.8V to 22.1V 1.8A 8Pin DFN EP T/R
-
Stock Locations:
-
Availability:297 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.33
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Adjust the voltage level of your devices with this step down AOZ1281DI DC to DC converter from Alpha & Omega Semiconductor. This converter"s single output can produce a current up to 1.8 A. By only needing an input voltage of 3 V with a maximum of 26 V, this is the best way to control the power in your circuit. With an adjustable output that has a voltage of 0.8 to 22.1 V, this is power management at its best. At a load regulation of 0.5%(Typ) and line regulation of 0.03%/V(Typ) your circuit is capable of maintaining a constant voltage level at your output. This converter is 95 % efficient. Its switching regulator has a frequency of 1500 kHz. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This converter has an operating temperature range of -40 °C to 85 °C.
AOZ1281DI Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | DFN-8 |
| Frequency | 1.5 MHz |
| Number of Outputs | 1 Output |
| Output Voltage | 0.8V ~ 22.1V |
| Output Current | 1.8 A |
| Switching Frequency | 1.5 MHz |
| Switching Current | 2.6 A |
| Input Voltage (Max) | 26 V |
| Input Voltage (Min) | 3 V |
| Output Voltage (Max) | 22.1 V |
| Output Voltage (Min) | 0.8 V |
| Output Current (Max) | 1.8 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 3.26 V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
