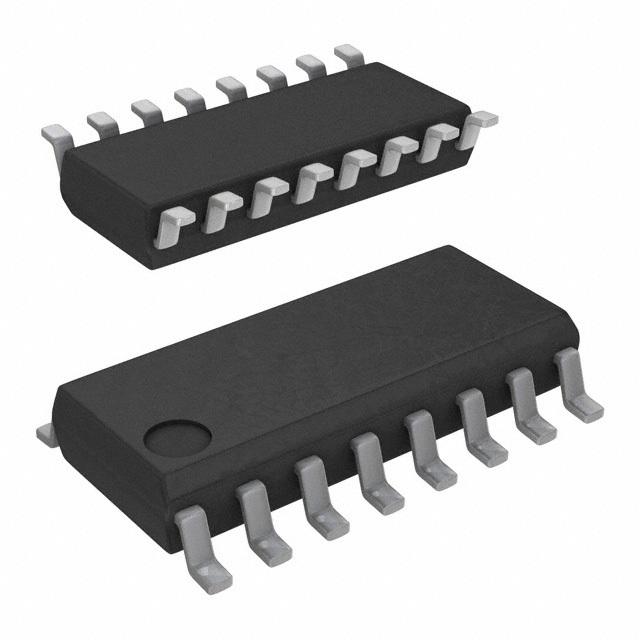

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TPS2087D is a quad Power Distribution Switch intended for applications where heavy capacitive loads and short circuits are likely to be encountered. The TPS208x devices incorporate 80mR N-channel MOSFET high-side power switches for power-distribution systems. Each switch is controlled by an independent logic enable input. Gate drive is provided by an internal charge pump designed to control the power-switch rise times and fall times to minimize current surges during switching. The charge pump requires no external components and allows operation from supplies as low as 2.7V. When the output load exceeds the current-limit threshold or a short is present, the TPS208x limits the output current to a safe level by switching into a constant-current mode, pulling the overcurrent (OCx) logic output low.
- 500mA Per Channel Continuous current
- Independent thermal and short-circuit protection with overcurrent logic output
- CMOS- and TTL-compatible enable inputs
- 2.5ms Typical rise time
- Undervoltage lockout
- 10µA Maximum standby supply current
- Bidirectional switch
TPS2087D Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | SOIC-16 |
| Supply Voltage (DC) | 5.50V (max) |
| Number of Outputs | 4 Output |
| Input Voltage (DC) | 5.50 V |
| Output Current | 0.5 A |
| Number of Channels | 4 Channel |
| Number of Positions | 16 Position |
| Power Dissipation | 1.123 W |
| Quiescent Current | 85.0 µA |
| Input Voltage (Max) | 5.5 V |
| Input Voltage (Min) | 2.7 V |
| Output Current (Max) | 500 mA |
| Number of Inputs | 4 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Power Dissipation (Max) | 1123 mW |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 2.7 V |
| Input Voltage | 5.5 V |
| Show | |
| Size-Length | 9.9 mm |
| Size-Width | 3.91 mm |
| Size-Height | 1.5 mm |
| Weight | 0.0024816040204 kg |
| Operating Temperature | 0℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
