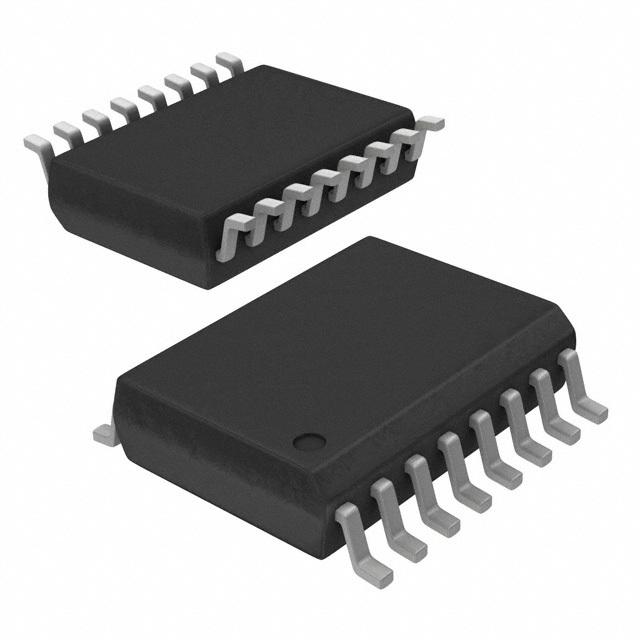

- ISO3082DWRG4 - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC22937685
-
Category:Interface Isolator, Digital Isolator
-
Package:SOIC-16
-
Datasheet:Datasheet 3D Model
-
Description:2.5 kVrms Isolated 5V Half-Duplex RS-485 Transceiver 16-SOIC -40℃ to 85℃
-
Stock Locations:
-
Availability:254 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 4.29
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The ISO3080, and ISO3086 are isolated full-duplex differential line drivers and receivers while the ISO3082, and ISO3088 are isolated half-duplex differential line transceivers for TIA/EIA 485/422 applications.
- These devices are ideal for long transmission lines since the ground loop is broken to allow for a much larger common-mode voltage range. The symmetrical isolation barrier of the device is tested to provide 2500 Vrms of isolation for 60s between the bus-line transceiver and the logic-level interface.
- Any cabled I/O can be subjected to electrical noise transients from various sources. These noise transients can cause damage to the transceiver and/or near-by sensitive circuitry if they are of sufficient magnitude and duration. These isolated devices can significantly increase protection and reduce the risk of damage to expensive control circuits.
- The ISO3080, SO3082, ISO3086 and ISO3088 are qualified for use from –40°C to 85°C.
- FEATURES
- • 4000-VPEAK Isolation
- • Bus-Pin ESD Protection
- – 16 kV HBM Between Bus Pins and GND2
- – 6 kV HBM Between Bus Pins and GND1
- • 1/8 Unit Load – Up to 256 Nodes on a Bus
- • Meets or Exceeds TIA/EIA RS-485 Requirements
- • Signaling Rates up to 20 Mbps
- • Thermal Shutdown Protection
- • Low Bus Capacitance – 16 pF (Typ)
- • 50 kV/µs Typical Transient Immunity
- • Fail-safe Receiver for Bus Open, Short, Idle
- • 3.3-V Inputs are 5-V Tolerant
- APPLICATIONS
- • Security Systems
- • Chemical Production
- • Factory Automation
- • Motor/Motion Control
- • HVAC and Building Automation Networks
- • Networked Security Stations
ISO3082DWRG4 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | SOIC-16 |
| Supply Current | 15 mA |
| Number of Channels | 3 Channel |
| Data Rate | 200 kbps |
| Isolation Voltage | 2500 Vrms |
| Thermal Shutdown | Yes |
| Drivers Per Package | 1 |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
