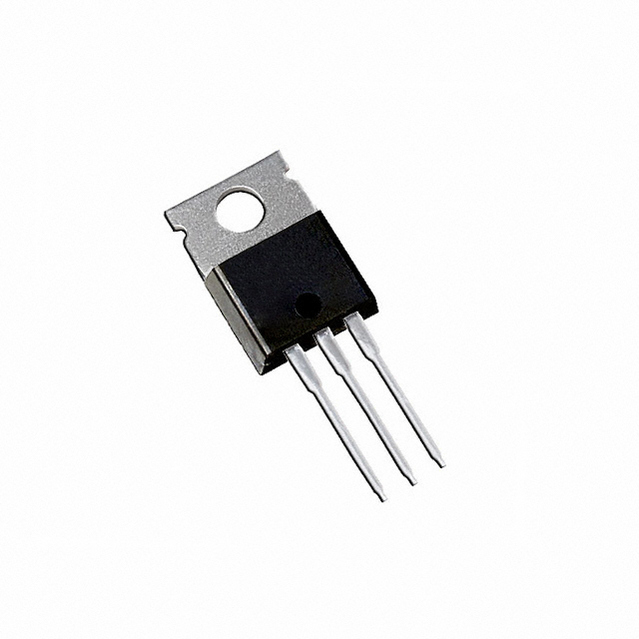

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

VDSS = 60V
RDS(on) = 0.023Ω
ID = 48A
Description
Fifth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications. The TO-220 package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 watts. The low thermal resistance and low package cost of the TO-220 contribute to its wide acceptance throughout the industry.
Advanced Process Technology
Dynamic dv/dt Rating
175°C Operating Temperature
Fast Switching
Fully Avalanche Rated

Show

IRFZ44E Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	TO-220-3
Voltage Rating (DC)	60.0 V
Current Rating	48.0 A
Part Family	IRFZ44E
Input Capacitance	1.36 nF
Gate Charge	60.0 nC
Drain to Source Voltage (Vds)	60 V
Breakdown Voltage (Drain to Source)	60.0V (min)
Continuous Drain Current (Ids)	48.0 A
Rise Time	60.0 ns
Input Capacitance (Ciss)	1360pF @25V(Vds)
Input Power (Max)	110 W
	Show
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
