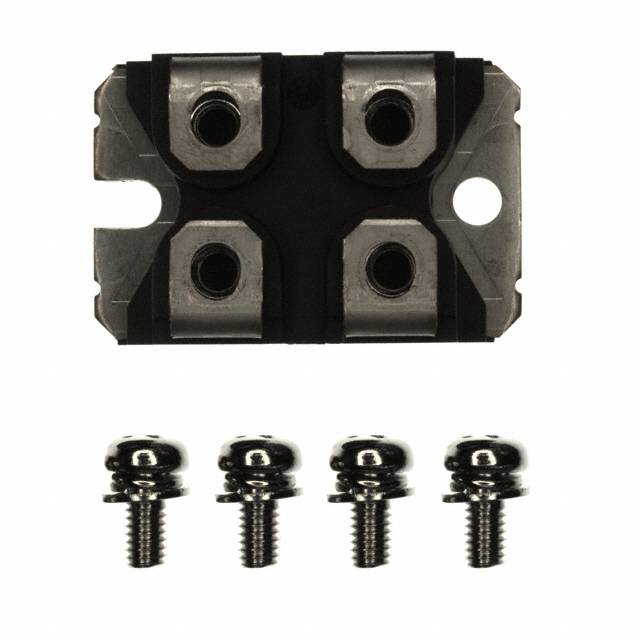

Image is for your reference only,please check specifications for details
Updated at 19/07/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Features
- • Power MOS V® MOSFETs
- - Low RDSon
- - Low input and Miller capacitance
- - Low gate charge
- - Fast intrinsic diode
- - Avalanche energy rated
- - Very rugged
- • ISOTOP® Package (SOT-227)
- • Very low stray inductance
- • High level of integration
- Application
- • AC and DC motor control
- • Switched Mode Power Supplies
- • Power Factor Correction
- • Brake switch
- Benefits
- • Outstanding performance at high frequency operation
- • Direct mounting to heatsink (isolated package)
- • Low junction to case thermal resistance
- • Very rugged
- • Low profile
- • RoHS Compliant
APT5010JVRU2 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Chassis |
| Number of Pins | 4 Pin |
| Case/Package | SOT-227-4 |
| Polarity | N-CH |
| Power Dissipation | 450 W |
| Drain to Source Voltage (Vds) | 500 V |
| Continuous Drain Current (Ids) | 44A |
| Rise Time | 16 ns |
| Input Capacitance (Ciss) | 7410pF @25V(Vds) |
| Fall Time | 5 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 450W (Tc) |
| Show | |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
