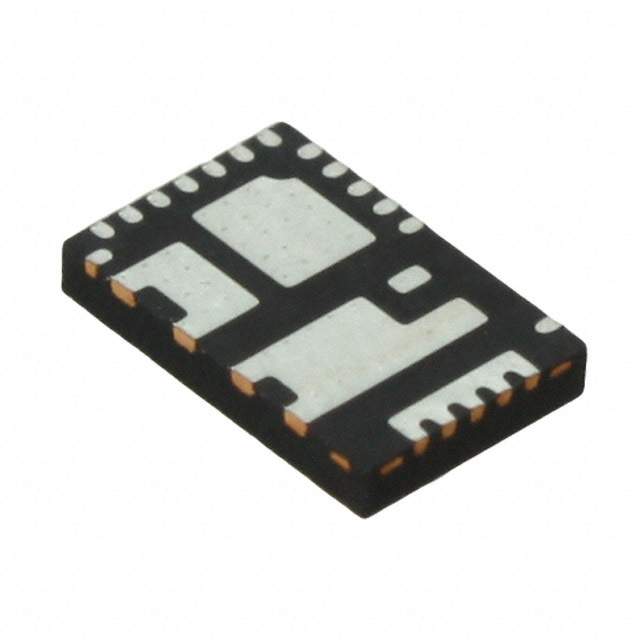

- IR3553MTRPBF - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC23367650
-
Category:FET Driver
-
Package:PQFN-25
-
Datasheet:Datasheet 3D Model
-
Description:IR3553M Series 1MHz 12mA Integrated Synchronous Buck Gate Driver - PQFN-25
-
Stock Locations:
-
Availability:257 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 4.98
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Benefits:
- Peak efficiency up to 93.2% at 1.2V
- Integrated driver, control MOSFET, synchronous MOSFET and Schottky diode
- Input voltage (VIN) operating range up to 15V
- Output voltage range from 0.25V up to (VCC - 2.5V)
- Output current capability of 40A DC
- Operation up to 1.0MHz
- Integrated current sense amplifier
- VCC under voltage lockout
- Thermal flag
- Body-Braking™ load transient support
- Diode-emulation high efficiency mode
- Compatible with 3.3V PWM logic and VCC tolerant
- Compliant with Intel DrMOS V4.0
- PCB footprint compatible with IR3550 and IR3551
- Efficient dual sided cooling
- Small 4mm x 6mm x 0.9mm PQFN package
- Lead free RoHS compliant package
IR3553MTRPBF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 25 Pin |
| Case/Package | PQFN-25 |
| Supply Voltage (DC) | 4.50V (min) |
| Number of Outputs | 1 Output |
| Output Current | 40 A |
| Number of Positions | 25 Position |
| Input Voltage (Max) | 15 V |
| Input Voltage (Min) | 4.5 V |
| Output Voltage (Max) | 5.5 V |
| Output Voltage (Min) | 250 mV |
| Output Current (Max) | 40 A |
| Supply Voltage | 4.5V ~ 7V |
| Input Voltage | 15 V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
