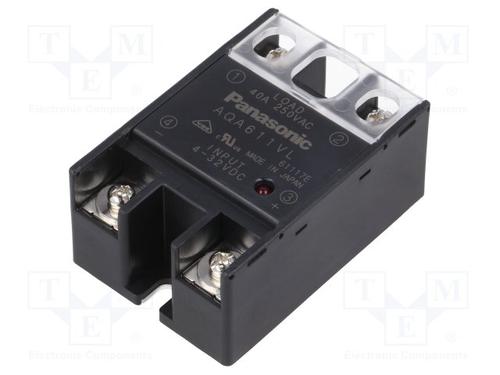

Image is for your reference only,please check specifications for details

AQA611VL - Panasonic
Manufacturer:
Panasonic
ManyChip's Part#:
MC2293593
Category:
Solid State Relay
Package:
Hockey Puck
Datasheet:
Datasheet 3D Model
Description:
Trigger Output SSR, 1Channel, 4000V Isolation, 2.283 X 1.575INCH, 1.004INCH HEIGHT, ROHS COMPLIANT PACKAGE-4
Stock Locations:
Availability:
283 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 22.39

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

AQA611VL Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Screw Terminals, Panel, Chassis
Number of Pins	4 Pin
Case/Package	Hockey Puck
Output Voltage	75V ~ 250V
Output Current	40000 mA
Load Current	40 A
Input Current	20 mA
Isolation Voltage	4000 v
Input Voltage (Max)	32 V
Input Voltage (Min)	4 V
Output Voltage (Max)	250 V
Output Current (Max)	40 A
Input Current (Min)	20 mA
Load Current (Min)	100 mA
Operating Temperature (Max)	80 ℃
Operating Temperature (Min)	-20 ℃
Operating Voltage (Min)	75 VAC
Operating Voltage (Max)	250 VAC
Input Voltage	4VDC ~ 32VDC
	Show
Size-Height	25.5 mm
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
