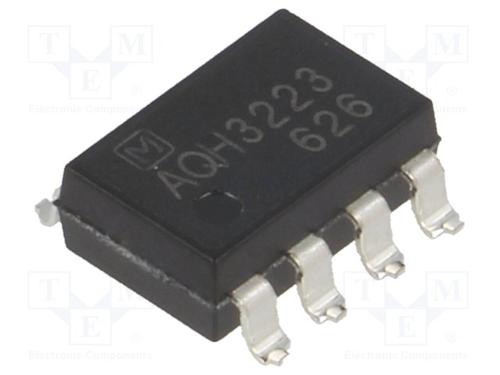

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- AQ-H Series Solid State Relays, 600 V Voltage Rating, 10 μs (Max.) Turn-On Time
- * Compact DIP type SSR that"s ideal for AC load control
- * Only ours handles both 100 and 200 VAC loads
- This relay handles both voltages in a single product.
AQH3223A Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 7 Pin |
| Case/Package | DIP-8 |
| Current Rating | 1.2 A |
| Output Voltage | 0V ~ 600V |
| Output Current | 1.20 A |
| Contacts Type | SPST-NO |
| Load Current | 1.2 A |
| Input Current | 20 mA |
| Isolation Voltage | 5000 v |
| Input Voltage (Max) | 1.3 V |
| Output Voltage (Max) | 600 V |
| Input Current (Min) | 50 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -30 ℃ |
| Operating Voltage (Max) | 600 VAC |
| Input Voltage | 1.3 V |
| Show | |
| Size-Height | 3.4 mm |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
