Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Through Hole |

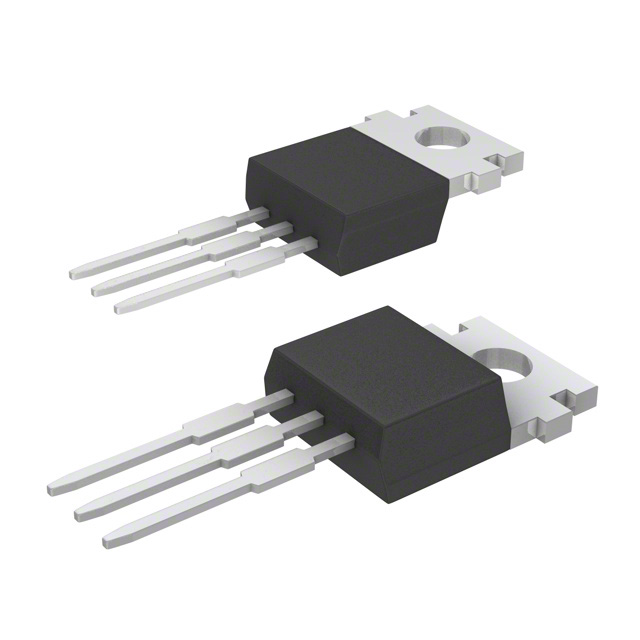

Case/Package | TO-220-3 |
Voltage Rating (DC) | -80.0 V |
Current Rating | -15.0 A |
Polarity | PNP |
Power Dissipation | 85 W |
Breakdown Voltage (Collector to Emitter) | 80 V |
Continuous Collector Current | 15A |
hFE Min | 1000 @5A, 4V |
Input Power (Max) | 85 W |
Operating Temperature (Max) | 150 ℃ |
Operating Temperature (Min) | 55 ℃ |
Show | |
Size-Length | 10.28 mm |
Size-Width | 4.82 mm |
Size-Height | 9.28 mm |
Operating Temperature | -55℃ ~ 150℃ (TJ) |
Product Lifecycle Status | Unknown |
Packaging | Tube |
Minimum Packing Quantity | 50 |
RoHS | Non-Compliant |
Lead-Free Status | Contains Lead |
