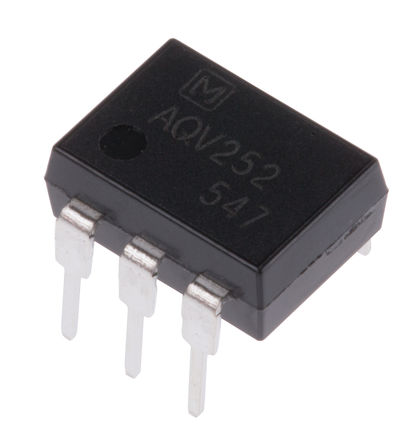

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The AQV252 is a Solid State Relay with SPST-NO contact and through hole terminals. This AQV-series PhotoMOS HE relay features highly sensitive and low on resistance. Optical coupling for extremely high isolation. Eliminates the need for a power supply to drive the power MOSFET is unnecessary because of the built-in optoelectronic device. This results in easy circuit design and small PC board area. Controls various types of loads such as relays, motors, lamps and solenoids.
- Low-level off state leakage current
- Low thermal electromotive force
- 410mW Power dissipation
- 3ms Turn-on and 0.2ms turn-off maximum time
- -40 to 85°C Operating temperature range
AQV252 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 6 Pin |
| Case/Package | DIP-6 |
| Supply Voltage (DC) | 3.00 V |
| Insulation Resistance | 1.00 GΩ |
| Capacitance | 3 pF |
| Output Voltage | 0V ~ 60V |
| Output Current | 400 mA |
| Contacts Type | SPST-NO |
| Load Current | 400 mA |
| Number of Positions | 6 Position |
| Input Current | 5 mA |
| Power Dissipation | 410 mW |
| Rise Time | 1.40 ms |
| Isolation Voltage | 1.5 kV |
| Forward Current | 900 µA |
| Input Voltage (Max) | 1.5 V |
| Output Voltage (Max) | 60 V |
| Output Current (Max) | 0.4 A |
| Input Current (Min) | 50 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 410 mW |
| Input Voltage | 1.14 VDC |
| Show | |
| Size-Length | 8.80 mm |
| Size-Width | 6.40 mm |
| Size-Height | 3.90 mm |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
