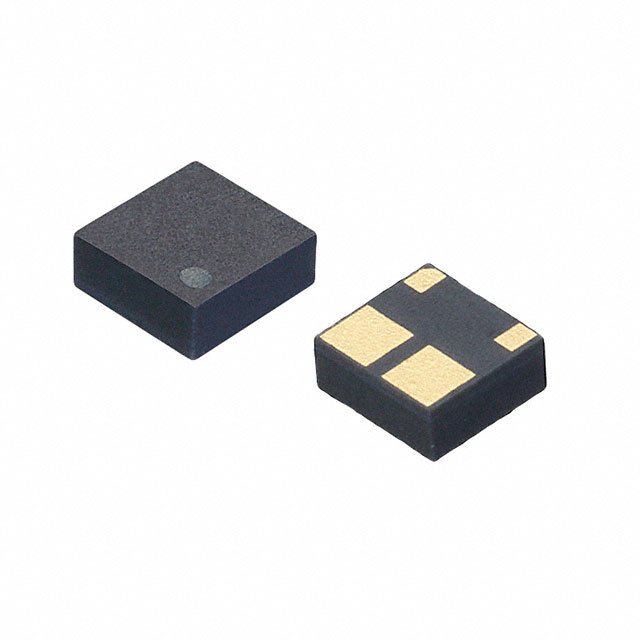

Image is for your reference only,please check specifications for details
- AQY2C1R2PX - Panasonic
-
Manufacturer:Panasonic
-
ManyChip's Part#:MC2957342
-
Category:Solid State Relay
-
Package:SMD-4
-
Datasheet:Datasheet 3D Model
-
Description:PANASONIC ELECTRIC WORKS AQY2C1R2PX MOSFET Relay, SPST-NO, 300mA, SMD, 40V, 1.5Ω, 200VAC
-
Stock Locations:
-
Availability:1,177 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 10.66
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **1-Channel (Form A) Type Power PhotoMOS Relay**
- * High capacity PhotoMOS Relay in a compact and slim 4-pin SIL
- * Extremely low ON resistance
- * Control low-level signal
- * Low-level off state leakage current
- * High I/O isolation voltage 2500 V
- * Eliminates the need for a counterelectromotive protection diode in the drive circuit on the input side
- * Power Photo MOS relays feature extremely low closed-circuit offset voltage to enable control of low-level analog signals without distortion.
AQY2C1R2PX Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | SMD-4 |
| Current Rating | 0.3 A |
| Capacitance | 14.5 pF |
| Output Voltage | 0V ~ 40V |
| Output Current | 300 mA |
| Contacts Type | SPST-NO |
| Load Current | 300 mA |
| Input Current | 0.2 mA |
| Power Dissipation | 250 mW |
| Isolation Voltage | 200 VAC |
| Input Voltage (Max) | 2.5 V |
| Output Voltage (Max) | 40 V |
| Output Current (Max) | 0.3 A |
| Input Current (Min) | 0.2 mA |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 250 mW |
| Input Voltage | 2.5 V |
| Show | |
| Product Lifecycle Status | Unknown |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
