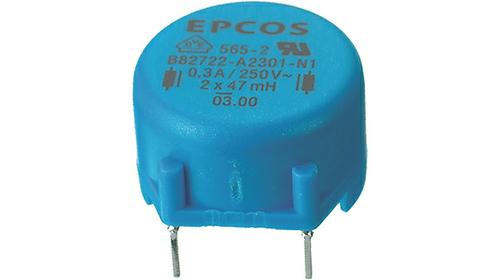

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

B82721A2202N1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	Horizontal, 4 PC Pin
Voltage Rating (AC)	250 V
Capacitance Tolerance	30 %
Flammability Rating	UL 94 V-0
Inductance	2 mH
Resistance	90.0 mΩ
Shielding	No
Inductance Tolerance	±30 %
Test Frequency	100 kHz
DC Resistance (DCR)	80 mΩ
Current Rating (Max)	2 A
Current Rating (DC)	2 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	250 VAC
Resistance (DC Max)	0.09 Ω
	Show
Size-Length	17.9 mm
Size-Width	17.3 mm
Size-Height	12.6 mm
Operating Temperature	-40℃ ~ 125℃
Packaging	Box
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
