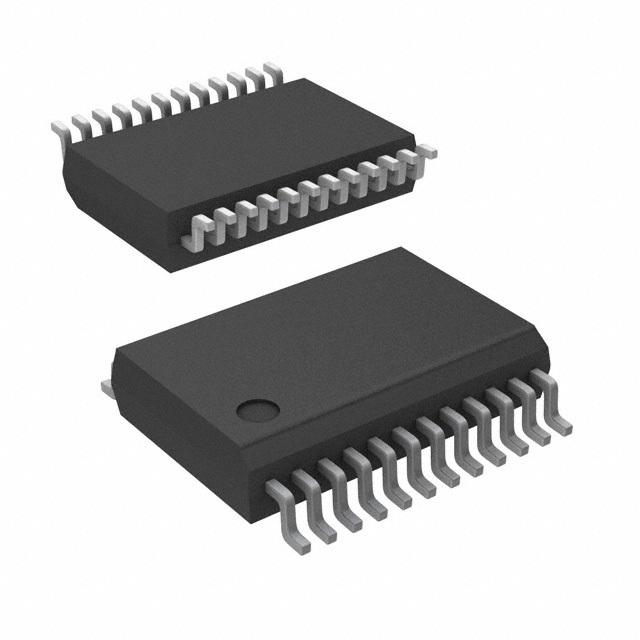

Image is for your reference only,please check specifications for details

DAC7613E - TI
Manufacturer:
TI
ManyChip's Part#:
MC45018569
Category:
Digital to Analog, DAC IC
Package:
SSOP-24
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS DAC7613E Digital to Analogue Converter, 12Bit, 100KSPS, Parallel, ± 4.75V to ± 5.25V, SSOP, 24Pins
Stock Locations:
Availability:
71 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.7

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DAC7613E is a 12-bit voltage output Digital-to-analog Converter with guaranteed monotonic performance over the specified temperature range. The DAC7613 accepts a 12-bit parallel input data, has double-buffered DAC input logic and provides a read-back mode of the internal input register. An asynchronous reset clears all registers to a mid-scale code of 800H or to a zero-scale of 000H. The DAC7613 can operate from a single 5V supply or from 5V and -5V supplies. Low power and small size makes the DAC7613 ideal for data acquisition systems and closed-loop servo-control.
Low power - 1.8mW
Unipolar or bipolar operation
Settling time - 10µs to 0.012%
Data read-back
Double-buffered data inputs
Green product and no Sb/Br

Show

DAC7613E Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	24 Pin
Case/Package	SSOP-24
Supply Voltage (DC)	-5.00 V, 5.00 V (max)
Number of Outputs	1 Output
Supply Current	-450 µA
Number of Channels	1 Channel
Number of Positions	24 Position
Number of Bits	12 Bit
Power Dissipation	0.00575 W
Sample Rate	100 ksps
Power Consumption	1.8 mW
Thermal Shutdown	No
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	5.75 mW
Number of DACs	1 DAC
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	4.75 V
	Show
Size-Height	1.95 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
