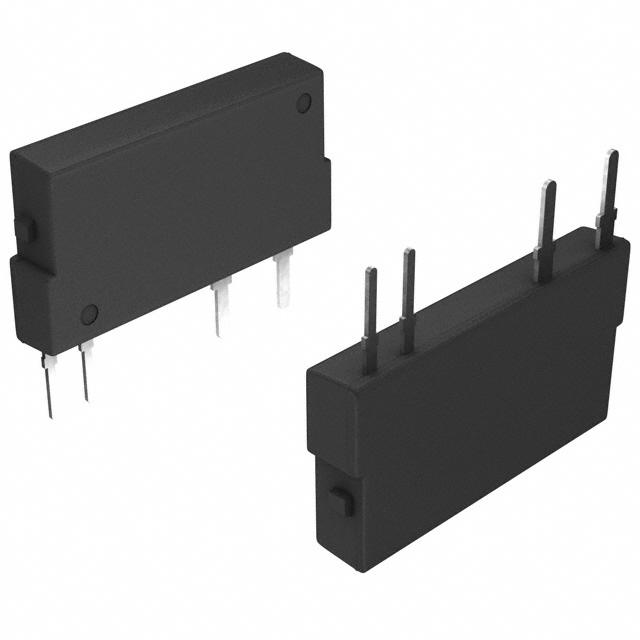

- AQZ105 - Panasonic
-
Manufacturer:Panasonic
-
ManyChip's Part#:MC4368503
-
Category:Solid State Relay
-
Package:SIP-4
-
Datasheet:Datasheet 3D Model
-
Description:PANASONIC ELECTRIC WORKS AQZ105 MOSFET Relay, SPST-NO, 2.6A, Through Hole, 100V, 0.17Ω, 2.5kV
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **1-Channel (Form A) Type Power PhotoMOS Relay**
- * A voltage sensitive power PhotoMOS
- * Extremely low ON resistance
- * Control low-level signal
- * Low-level off state leakage current
- * Both AC/DC dual types and DC-only types are available
- * Eliminates the need for a counterelectromotive protection diode in the drive circuit on the input side
- * Power Photo MOS relays feature extremely low closed-circuit offset voltage to enable control of low-level analog signals without distortion.
AQZ105 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 4 Pin |
| Case/Package | SIP-4 |
| Capacitance | 1.5 pF |
| Output Voltage | 0V ~ 100V |
| Output Current | 2600 mA |
| Contacts Type | SPST-NO |
| Load Current | 2.6 A |
| Input Current | 10 mA |
| Power Dissipation | 1600 mW |
| Rise Time | 1.89 ms |
| Isolation Voltage | 2.5 kV |
| Forward Current | 1 mA |
| Input Voltage (Max) | 1.5 V |
| Output Voltage (Max) | 100 V |
| Output Current (Max) | 2.6 A |
| Input Current (Min) | 50 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 1600 mW |
| Input Voltage | 1.5 V |
| Show | |
| Size-Length | 21.0 mm |
| Size-Width | 3.50 mm |
| Size-Height | 12.5 mm |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
