Description

The ASDX Digital Output Series pressure sensors are fully calibrated and temperature compensated with on-board Application Specific Integrated Circuitry (ASIC). These DIP (Dual In-line Package) sensors provide digital correction of sensor offset, sensitivity, temperature coefficients and non-linearity and are designed for use with non-corrosive, non-ionic working fluids such as air and dry gases. The ASDX Series uses either SPI I2C-compatible protocol, which allows easy interfacing to most commonly used microcontrollers and microprocessors, without additional components and electronic circuitry. Sensor output is a corrected pressure value in hexadecimal format with 12-bit resolution.*Features:**
* ASIC Enhanced Output
* Wide Compensated Temperature Range: 0°C to+ 85°C (+32°F to +185°F)
* Available in Absolute, Differential and Gage Types
* Pressure Ranges: From 0 psi to 1 psi through 0 psi to 30 psi
* Accuracy: ±2% Max. Full Scale Span
* Response Time of 1 ms **Typical Applications:**
* Medical Equipment
* Pneumatic Controls
* HVAC Controls
* Barometry

Show

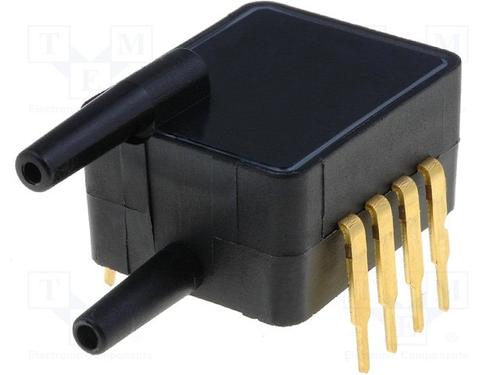

ASDXRRX005PGAA5 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Voltage Rating (DC)	5.00 V
Output Voltage	0.5.4.5 VDC
Supply Current	2.5 mA
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-20 ℃
Accuracy	±2 %
Voltage Rating	5 V
Supply Voltage	4.75V ~ 5.25V
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	4.75 V
	Show
Size-Height	11.25 mm
Operating Temperature	-20℃ ~ 105℃
Product Lifecycle Status	Not Recommended for New Design
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
HTS Code	9026204000
ECCN Code	EAR99
